9" Wired Backup Camera System with Quad Split Screen - Waterproof, 18 IR Night Vision for RV, Truck, Car - Easy Installation for Safer Parking & Reversing

Product Description

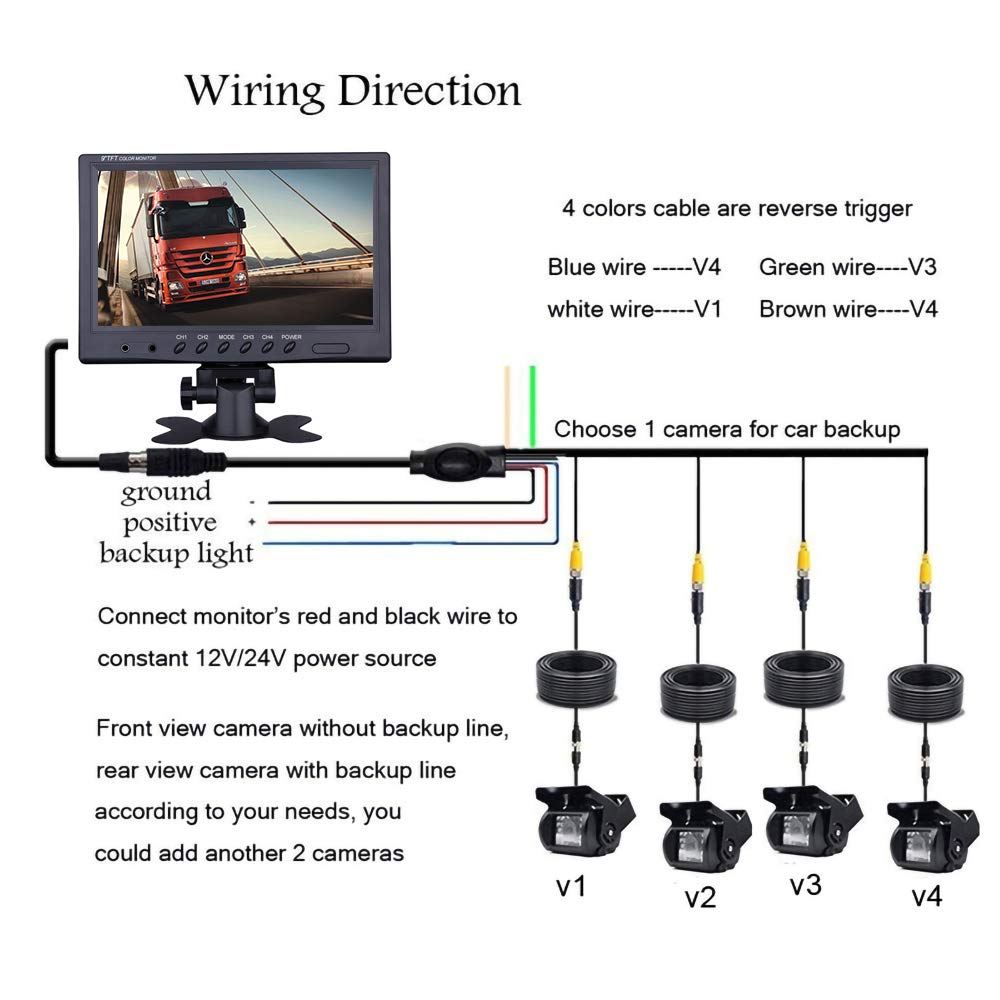

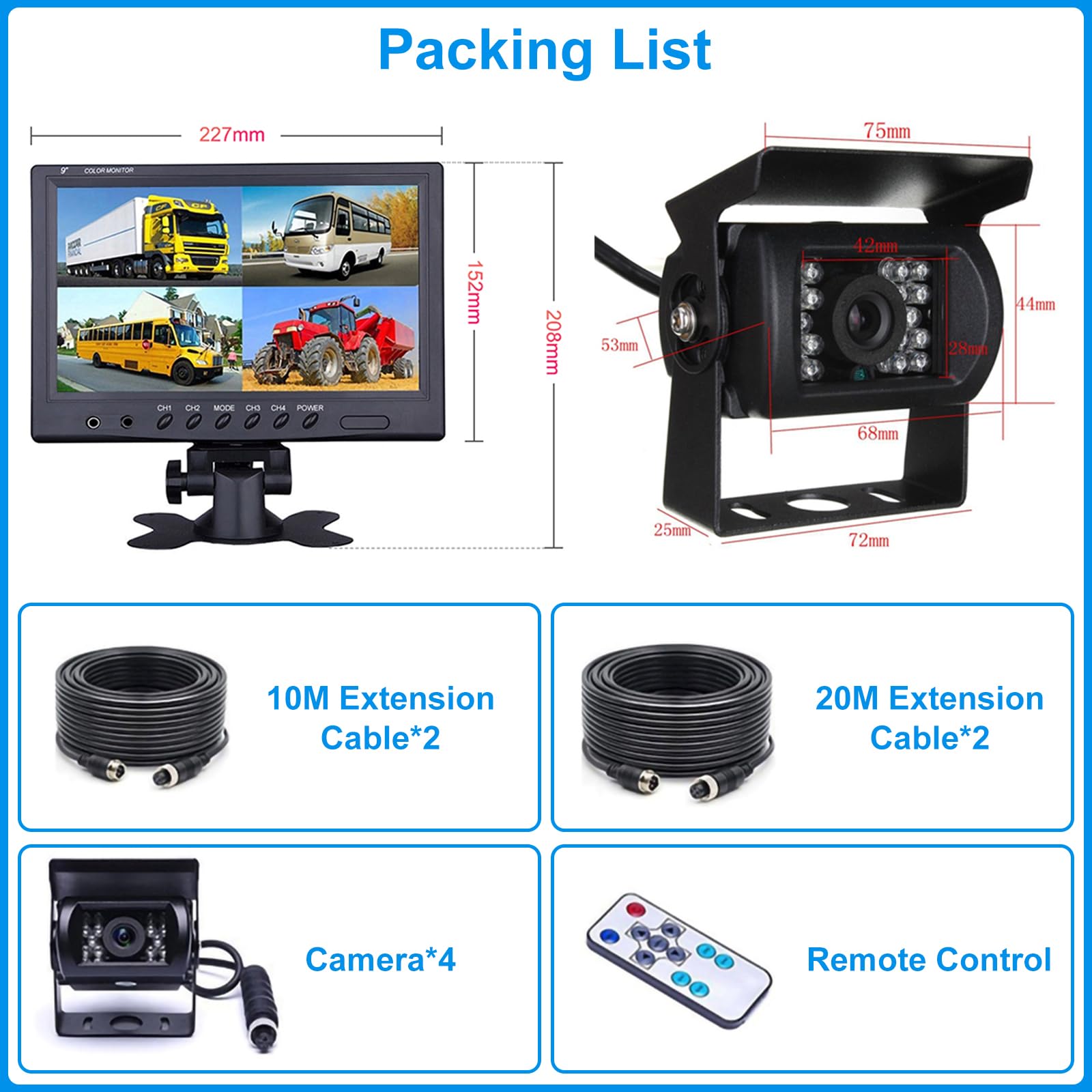

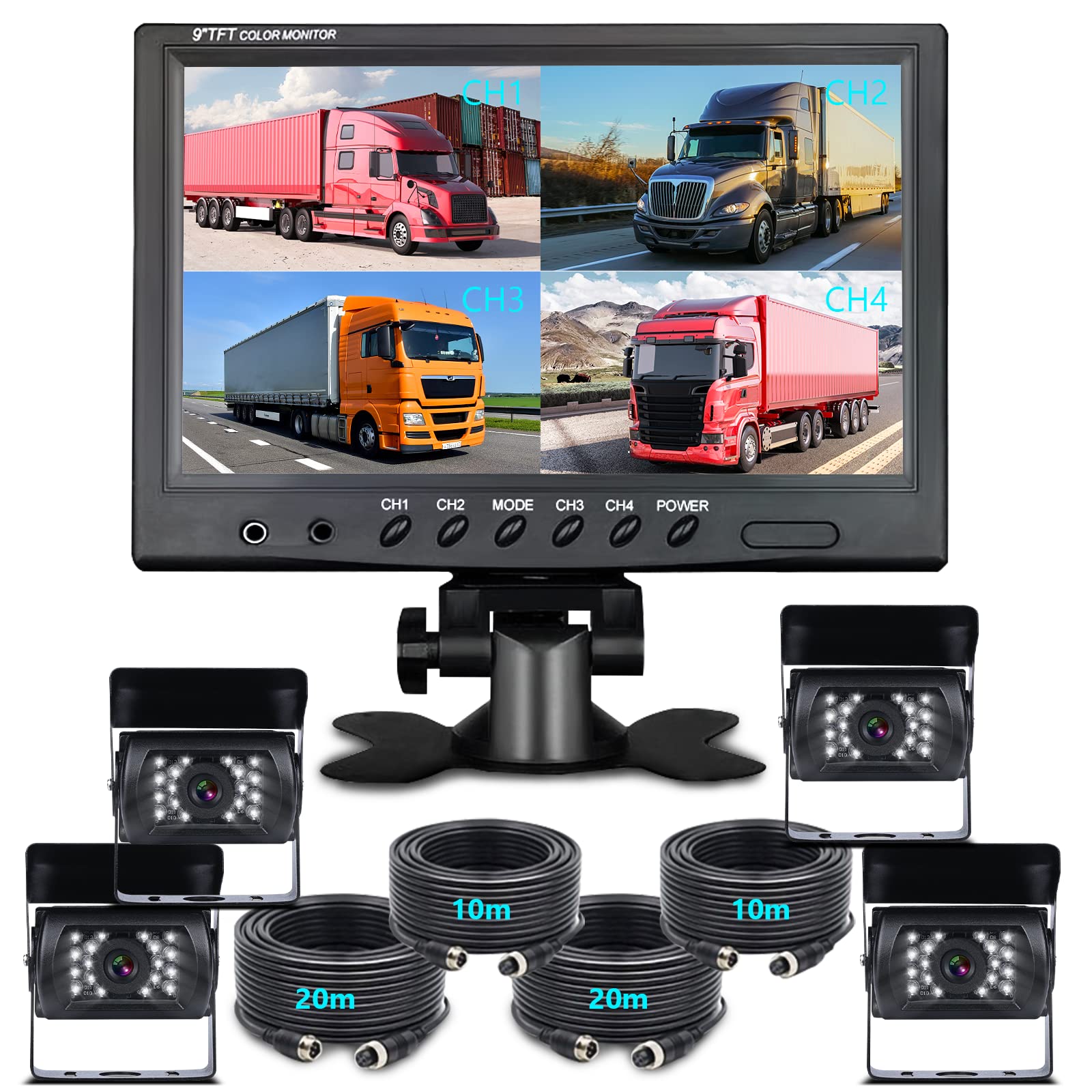

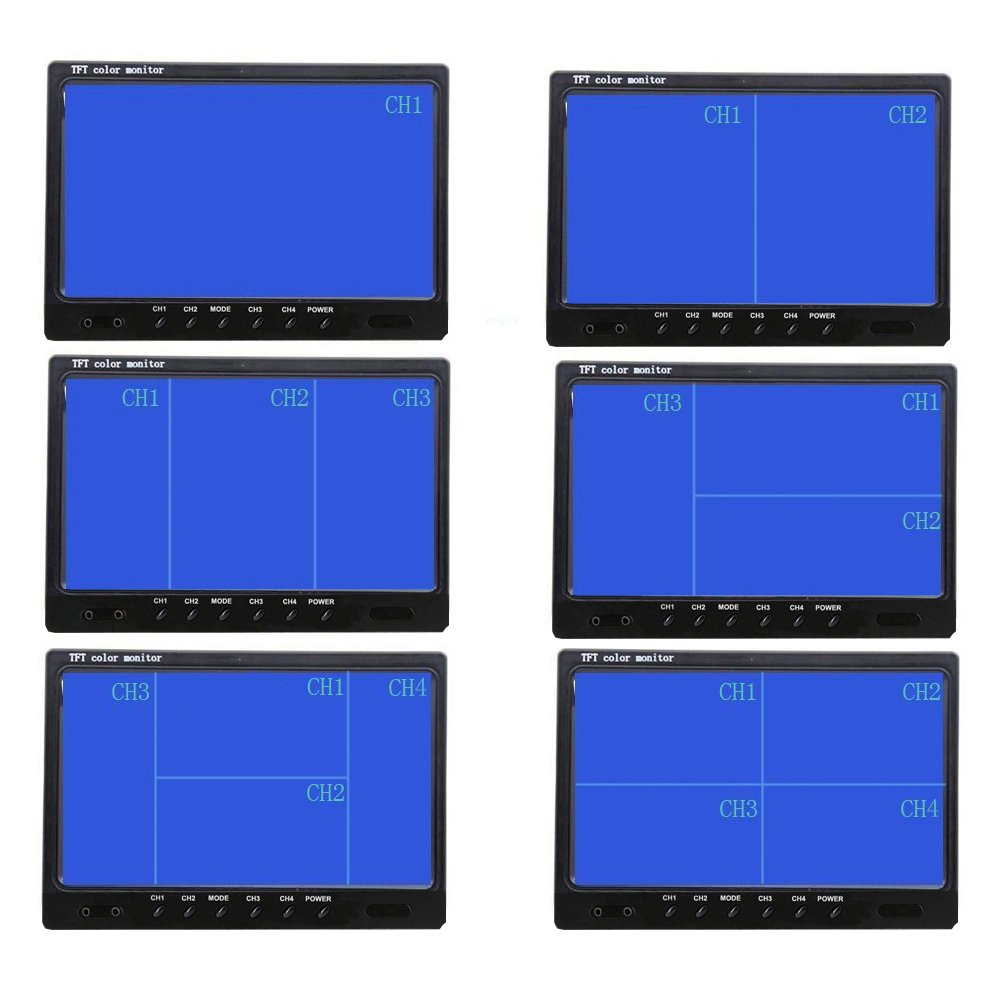

Hodozzy 9 Inch Quad Split Screen Wired Backup Camera And Monitor System, + 2 Rear View Cameras + 2 Front View Cameras Monitor Specifics: Power Supply: DC 9V-35VDisplay Rate: 4:3 / 16:9 selectTV system: PAL (CCIR), NTSC (EIA) PAL: 625 Lines; NTSC: 525 LinesEffective Pixels: 800(RGB)×480 pixelsBrightness:300cd/㎡Power Consumption:5WOperate mode: Key operation & remote control4 Video signal input (quad image,2/3/4 images optional)Automatically Switch: The monitor will automatically switch to rear view camera image when reversingUltra-low power consumption, to prevent over heat and easy to install.Operating temperature: -15℃ - +50℃Storage temperature: -20℃ - +70℃Language:Chinese,English,Japanese,Germany,French,Russian,Spanish,Portuguese,Italiano,Russian,Turkish,Polish Wired Backup Camera and Monitor System + 2*10 meters Cable + 2*20 meters Cable The monitor has six color cables (Red / black / blue / white / green / brown ). The red wire connected to positive 12V/24V, black wire to ground. If you use one camera as a backup camera, Connect the corresponding color cable to 12V/24V positive power accordingly (Blue-CH1, White- CH2 , Green- CH3, Brown -CH4) eg: If the blue wire is connected to backup light positive, when you pluu reverse gear, the monitor will automatically show the backup image( CH1). When the reversing finished, the monitor will return to original video showing mode. Kindly note: The 4 colors cables ( blue / white / green / brown ) could not connected meanwhile, you only need to connect one of them if you choose one camera as a reversing camera. The 9 inch monitor is quad split screen.It could show any channel alone, also can show several channel meanwhile. The package include 4 cameras and 4 extension cable (2*10m, 2*20m). The install is very easy, please reference the above wiring diagram. The connector is pins type, please be careful connect it correct and tightly. Every connector has interface mark. 2 Front View Camera + 2 Backup Camera Camera Specifics: Vision Degree: 150°Waterproof grade: IP68Operating voltage: 9V-35VSignal format: PAL /NTCSResolution: 800TV lines, Chipset: 1/4 inch CMOS7440HVertical Sync Frequency: 50/60Hz, Minimum illumination: 0.01luk/f1.2Power Cord: 4 pins type, strong anti-interference, waterproof connector, more closely connectedPlease Note: 2 cameras (without guide lines) + 2 backup cameras (with guide lines)Cameras are 360-degree adjustable, for more flexible installation.If any connection issue, please message us. 4 Split Screen Modes Choose: Monitor allow to set display 1/2/3/4 channels at same timeCH1-CH4 display image from V1-V4 connector accordinglyAutomatically Switch: After proper wiring, the monitor will automatically switch to single channel of rear view camera image when the reverse gear is pulled (Operated by remote) Image can be rotated horizontally and vertically for mirror or normal viewingMore setting on remote control "Menu”: select settings of Brightness, rotate image, contrast, language etc.Warmly tips: if you want to adjust something, please choose the Channels you need to adjust. Rear Assist guildline Lines: 2 front view camera (without guide lines)2 backup camera(with guide lines)CH4 channel can adjust turn on/off guide line, you can choose one camera as backup camera on CH4. Image Flip: The default is mirror image for rear view.With image flip function you can switch to facing view (front view), or images upside down (Vertical flip).Warmly tips: if you want to adjust image, please first choose the camera channels you need to adjust. then set. Package Content: 1* 9 Inch Monitor1* Power Cord1* Dashboard Mounting Bracket4* Aviation Type Cameras2* 33ft Length Cables2* 65ft Length Cables1* Remote Control Similar Item Similar Item Similar Item Similar Item Similar Item Similar Item Buying Options Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews 1.0 out of 5 stars 1 3.9 out of 5 stars 293 4.5 out of 5 stars 71 — 4.2 out of 5 stars 46 4.2 out of 5 stars 53 Price — no data $145.99$145.99 $159.99$159.99 $125.99$125.99 $95.99$95.99 $45.99$45.99 Signal Wireless Wired Wired Wireless Wired Wireless Camera Quantity 4 4 4 2 2 1 Split Screen NO YES YES YES YES No Screen Size 9 inch 7 inch 9 inch 9 inch 9 inch 5 inch Video Record NO NO YES YES YES No
