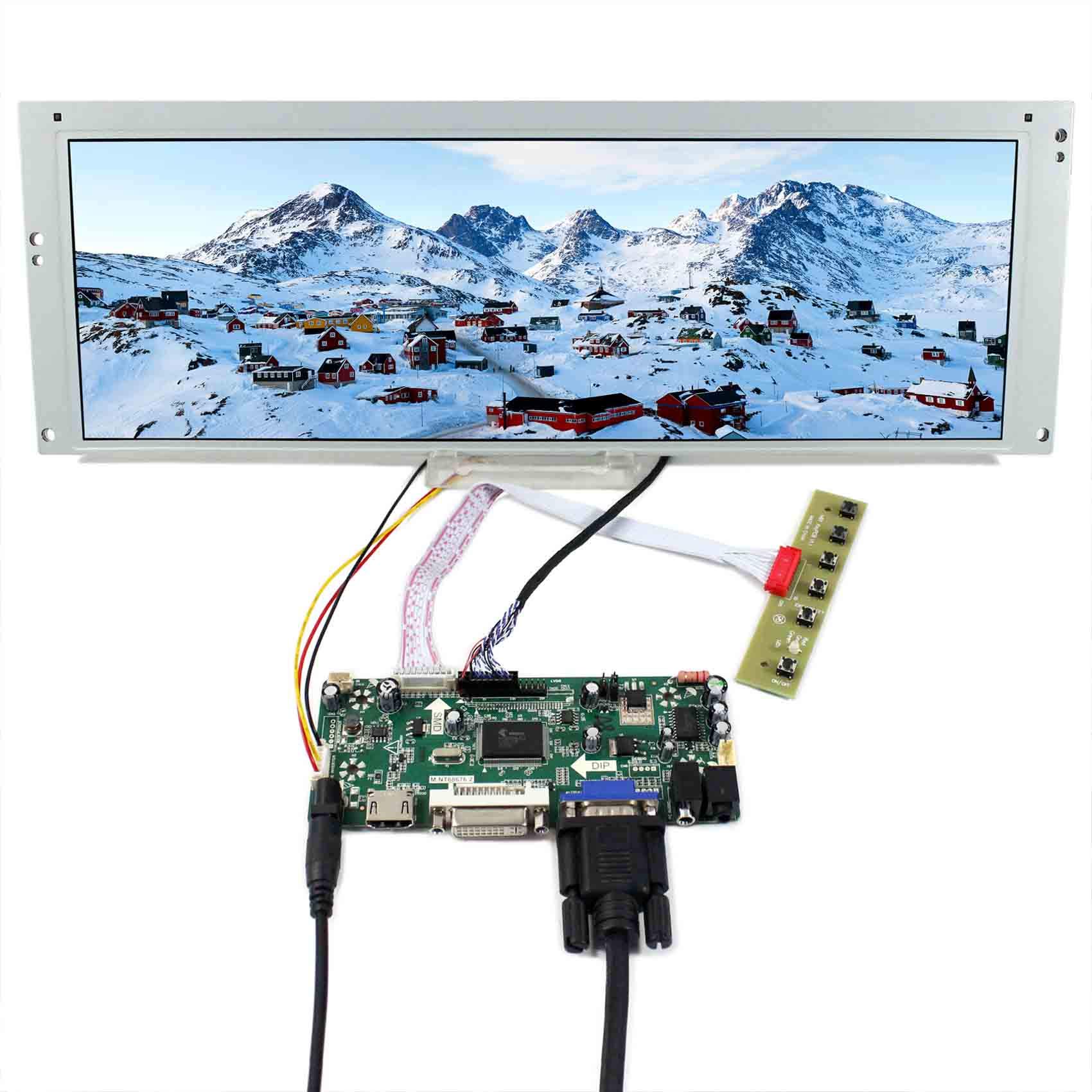

VSDISPLAY 14.9 Inch LTA149B780F LCD Screen - 1280x390 Resolution TFT Display with HDMI VGA DVI Audio LVDS Controller Board - DIY Marquee Monitor Replacement for Arcade Machines, Digital Signage & Gaming Setups

Product Description

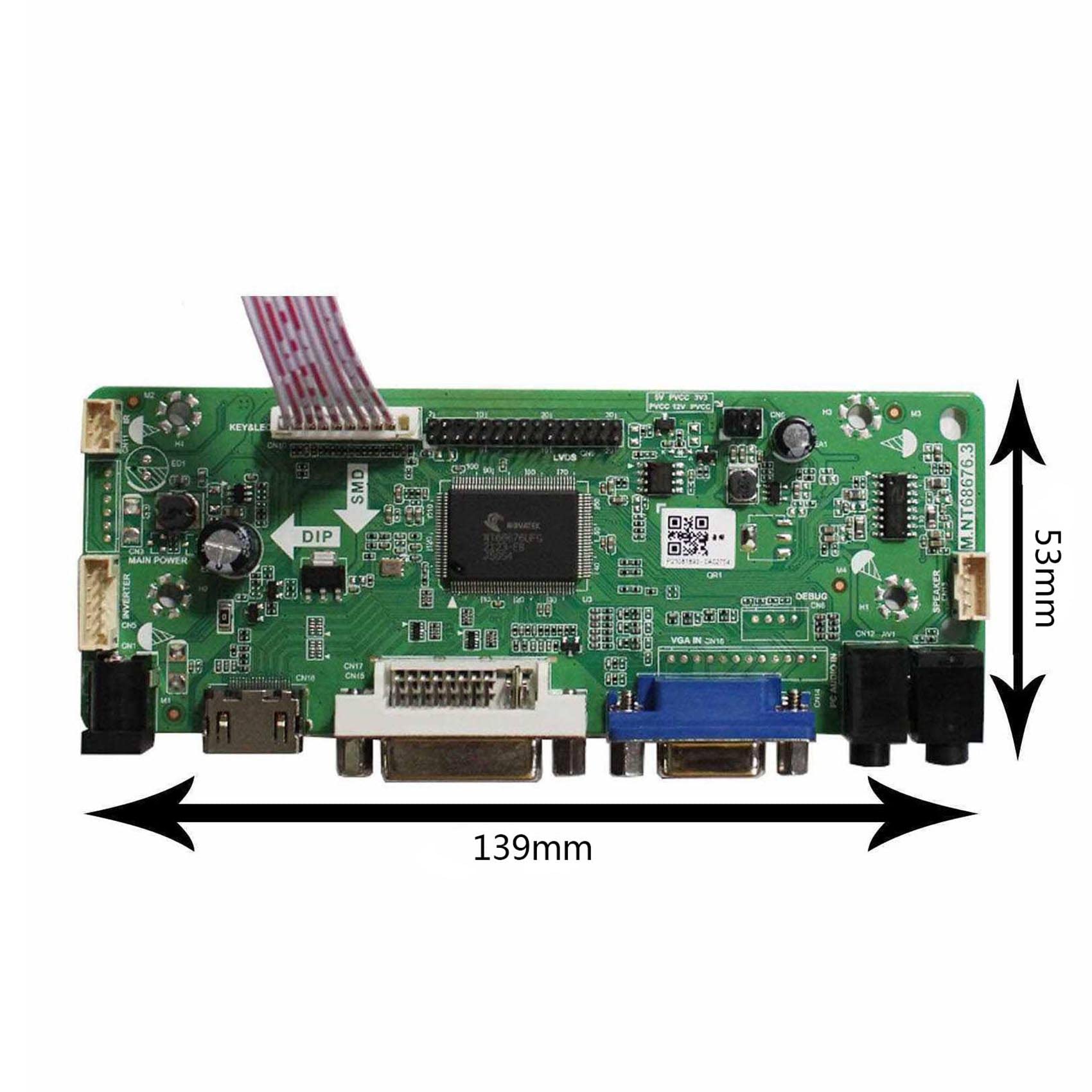

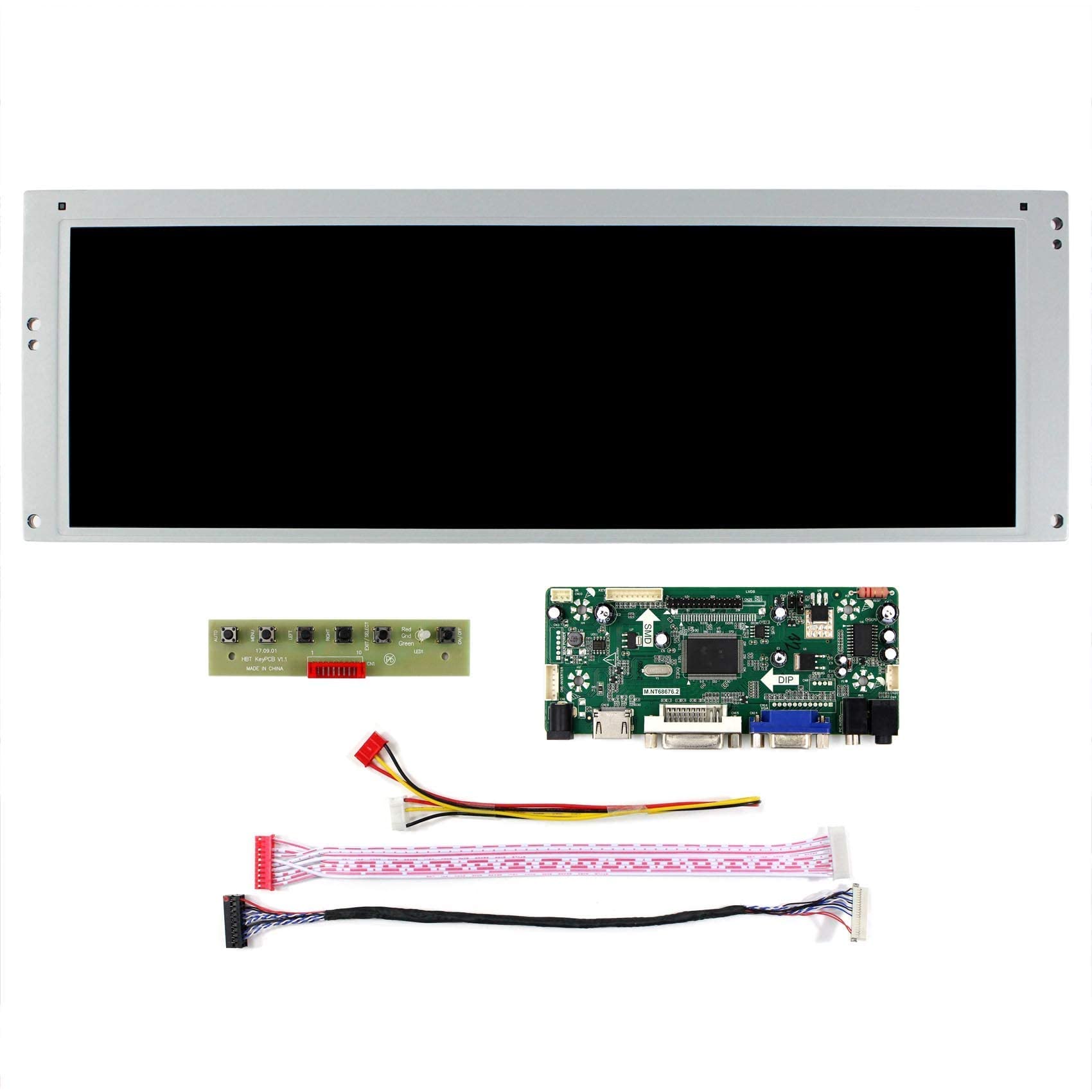

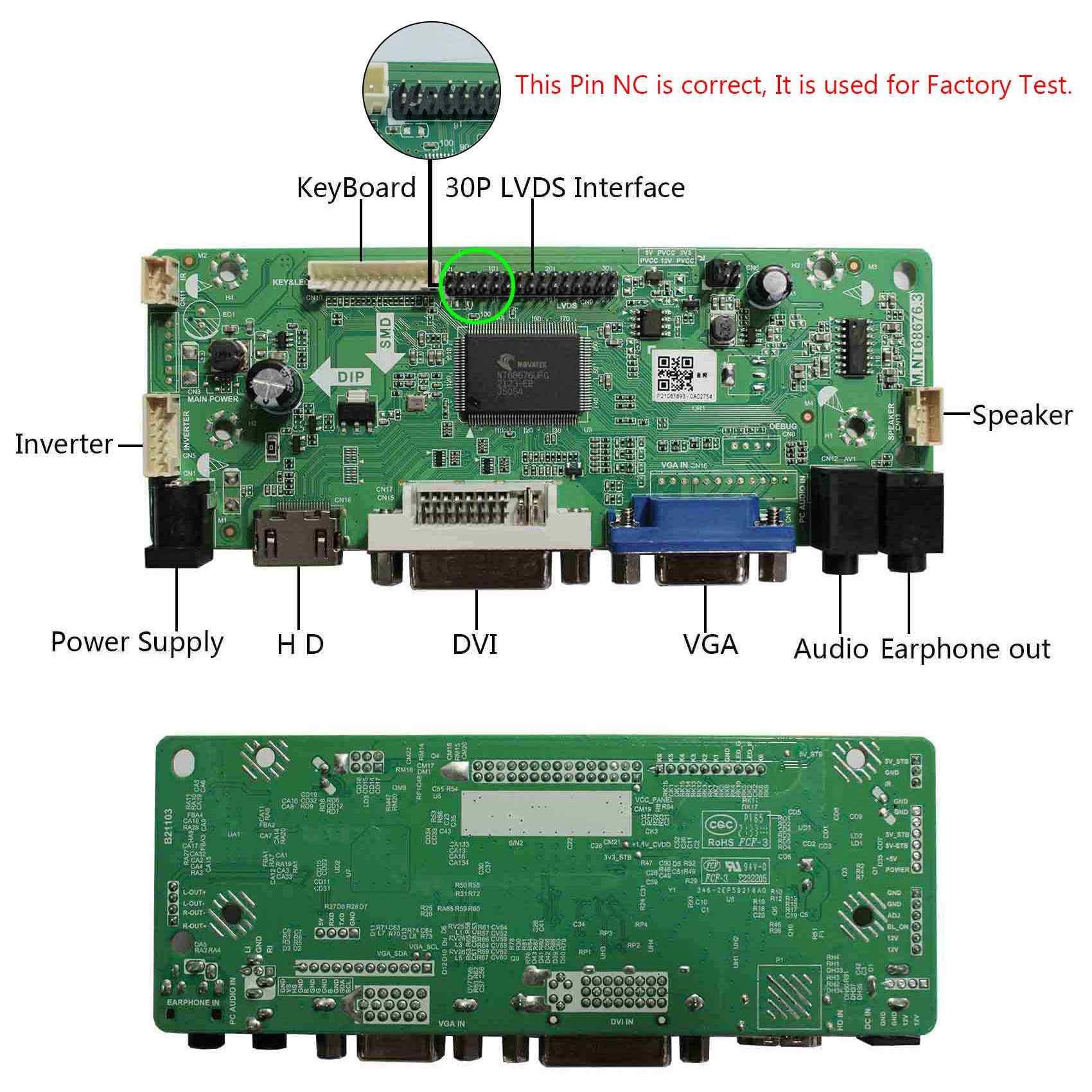

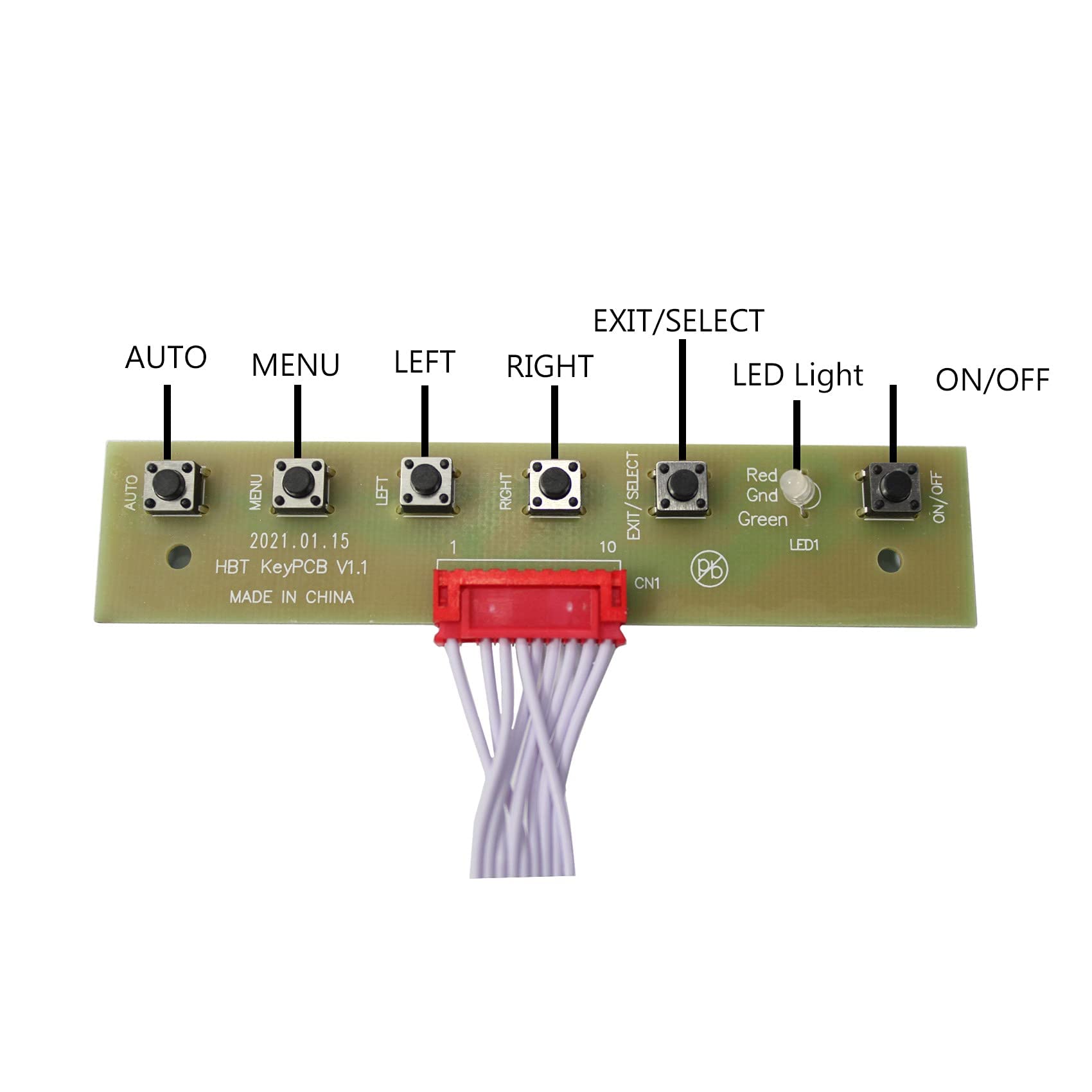

Parameters for screen with board Parameters Screen size: 14.9inchDisplay Mode TN, Normally White, TransmissiveResolution 1280RGB)×390Brightness 400 cd/m²Contrast Ratio 500:1Viewing Angle 80/80/45/70Outline Size 407.5× 136×20.5(H×V×D)mmDisplay Area 360.94 × 109.98 (H×V)mm Cable connecting on board Standby Model <1WVideo Input: HDMI DVI VGAAudio Input: HDMIAudio Output: Speaker ConnectorCome In Standby Model When Not Input SignalBoard Size: 139mm x 53mm x 17mm Signal connecting to screen Signal Interface LVDS (1 ch, 6-bit) , 20 pins , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)OSD: Brightness Contrast Auto Language And So On Cable connecting pictures Operation steps: 1.Pls make sure the board working in insulated environment to avoid short road.2.No need driver to be installed ,directly connecting the cables as link pictures.3.Power on the board with 12V DC 2A input ,the LED light on keyboard will be green.4.When the LED light green ,enter into HDMI/VGA/DVI signal ,Then customize the resolution to 1280x390,60HZ ,choose full screen ,Then the screen will show pictures or video perfectly. Resolution setting : 1.Choose the Display resolution setting .2.Choose the display you would like to setting .3.Customize the resolution to 1280x390,60HZ.If not 1280x390,then the resolution will be deformed .4.Scaling a scaling mode to :Full-screen.If didn't choose the full screen ,then the screen picture will be deformed,too.5.If there is any problem during using ,just specify the problem to us . Compatible parts Compatible power supply Power supply: 12V DC 2A (pls prepared by yourself)Port size : 5.5mmx2.1mmPin : Positive in middle ,negative on both sides Compatible speaker Speaker: 8ohm 2W 4pin PH 2.0 connector Compatible board case Case: Acrylic Material White Case For M.NT68676 Protect Case 8.8" CLAA088WA01XN 1280X480 screem and HDMI board 10.3" HSD103KPW2-A10 1920X720 screen and HDMI audio board 12.3" HSD123KPW1-A30 1920X720 screen with glass and HDMI USB SD card board 12.6" NV126B5M-N41 screen and 2mini HDMI board 14.9" LTA149B780F 1280x390 screen and HDMI VGA DVI board Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket Customer Reviews 3.3 out of 5 stars 5 3.2 out of 5 stars 6 4.0 out of 5 stars 1 4.2 out of 5 stars 39 3.9 out of 5 stars 48 Price £59.90£59.90 £126.99£126.99 £148.00£148.00 £119.99£119.99 £119.00£119.00 Video input HD-MI VGA AV HDMI VGA DVI Audio HD-MI USB SD AV 2mini HDMI HDMI VGA DVI Audio Screen resolution 1280x480 1920X720 1920X720 1920X515 1280x390 Signal interface LVDS(1ch 8bit),60Pin LVDS (2 ch, 8-bit) 50pins LVDS (2 ch, 8-bit),50 pins eDP (2 Lanes),30Pins LVDS (1 ch, 6-bit) , 20 pins Display area 209.28×78.48 (H×V)mm 243.6×91.4 (H×V)mm 292.032 × 109.512 (H×V)mm 309.31×82.97 (H×V)mm 360.94 × 109.98 (H×V)mm Brightness 500 cd/m² 850 cd/m² 850 cd/m² 250 cd/m2 400 cd/m2 Viewing Angle 85/85/85/85 85/85/85/85 85/85/85/85 85/85/85/85 80/80/45/70 Contrast Ratio 1000:1 1000:1 1000:1 1200:1 500:1 Color Depth 16.7M , 70% NTSC 16.7M , 75% NTSC 16.7M , 71% NTSC 16.7M , 45% NTSC 262K
