VILTROX DC-550 Pro 5.5 Inch 4K HDMI Touchscreen DSLR Camera Field Monitor - 1200 Nits Brightness, 3D LUT, HD 1920x1080, Focus Peaking Assist - with Battery & Sunshade Hood - Perfect for Outdoor Filming, Vlogging, and Professional Video Production
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81584490
Product Description
1200Nits | 3D LUT | 1920x1080 IPS VILTROX DC-550Pro 5.5" Touchscreen Camera Filed Monitor VILTROX DC-550Pro 5.5" Touchscreen Camera Filed Monitor with 4K HDMI Input Output/Custom 3D Lut/1200 Nits/1920x1080 High Resolution/1000:1 Contrast/160˚Ultra-wide Viewing Angle Video Focus Peaking Assit Video Monitor with Battery/Sunshade Hood/Cold Shoe Mount for Sony/Nikon/Canon Camera The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Previous page Only 1pcs NP-F550 2200mAh Battery and 1pcs Type-C charging cable included; DC adapter Not Included! Next page 1 1200 Nits High-Bright 2 Triple Power Supply 3 4K HDMI Input/Loop Out 4 Touch Screen Control 5 Language Setting Previous page Professional Monitoring Functions VILTROX DC-550 Pro Camera Field Monitor: 2 kinds of histogram: RGB, Brightness3 kinds of parade waveforms: RGB, Y, YUV; Custom 3D LUT (SD Card is not included) lmport 3D LUT through SD card, which is convenient for customers to use any camera Log mode to shoot and monitor, and it is also convenient to achieve a variety of creative styles in post-production. False Color Effectively control the exposure and is a supplement to the brightness waveform. It corresponds different exposure values to different color scales to visually display different exposure states. Brightness Histogram/Parada Wave/Voume Bar/RGB These functions are to monitor the brightness/color/voice etc of incoming HDMI high-definition images or video, as well as capture and display the change values in real time according to changes. Composition Assiting Function Nine Grid,Safe frame,Center Mark,Auxiliary Line/Marker settings/Safety box/Three-point center line/Marker ratio/Screen ratio scaling/Screen size scaling/Anti-extrusion function Image Zoom Function Can easily and intuitively zoom in and Out of yourshot with the pinch-to-zoom gesture. Next page Quick-released Hood & Compact With detachable hood design, one second quick release, can effectively block the interference from light source, obtain good monitoring effect when filming outdoor. Four custom buttons and stepwise knobs for more accurate function setting, greatly improving photography efficiency. "Damping Lock Design" Special Custom Adapter Our monitor with built-in Arri locating, 1/4 screw hole, and a custom cold shoe adapter. This innovative design provides double fixation for the monitor when shooting with a camera. Additionally, the monitor can be rotated 170°, offering convenience for capturing shots from different angles. Built-in Cooling Fan System Designed with built-in heat dissipation for longer working life. Portable Hard Carry Case Conveniently packed all the necessary accessories in one case 3.5mm Headphone Interface Built-in 3.5mm headphone port for real-time monitoring of the voice. Convenient Shortcut Key F1/F2/F3 to achieve one-click setting, no need to enter menu settings. What's in the box: 1x DC-550Pro Camera Video Monitor 1x Sunshade Hood, 1x VL-550 Cold Shoe Adapter 1x VILTROX NP-F550 Battery, 1x Type-C Cable, 2x HDMI Cable 1x Plastic Carry Case, 1x User Manual, 1x Packing Box The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Comparison of VILTROX DC-550 Series Touch Screen Camera Field Monitor VILTROX DC-550 Add to Cart VILTROX DC-550 Add to Cart VILTROX DC-550Pro Add to Cart VILTROX DC-550 Lite Buying Options Customer Reviews 4.4 out of 5 stars 129 4.4 out of 5 stars 129 4.4 out of 5 stars 129 4.4 out of 5 stars 129 Price $168.00$168.00 $168.00$168.00 $198.00$198.00 — Display: 5.5 inch IPS Touch Screen 5.5 inch IPS Touch Screen 5.5 inch IPS Touch Screen 5.5 inch IPS Touch Screen Resolution: 1920x1080 pixels 1920x1080 pixels 1920x1080 pixels 1920x1080 pixels Screen ratio: 16:9 16:9 16:9 16:9 Brightness: 1200cd/m² 1200cd/m² 1200cd/m² 400cd/m² Contrast ratio: 1000:1 1000:1 1000:1 1000:1 Viewing angle: 160° 160° 160° 160° Screen color gamut: 100%±3%, sRGB/Rec709 100%±3%, sRGB/Rec709 100%±3%, sRGB/Rec709 100%±3%, sRGB/Rec709 Input and output signals: HDMI 1.4; 4K@30Hz HDMI 1.4; 4K@30Hz HDMI 1.4; 4K@30Hz HDMI 1.4; 4K@30Hz Functional differences: Brightness; Y Brightness; Y RGB, brightness; RGB, Y, YUV Brightness; Y Weight: 280g 280g 280g 267g SD card slot: ✔ ✔ ✔ ✔ Cooling Fan: ✔ ✔ ✔ ✘
Product Features

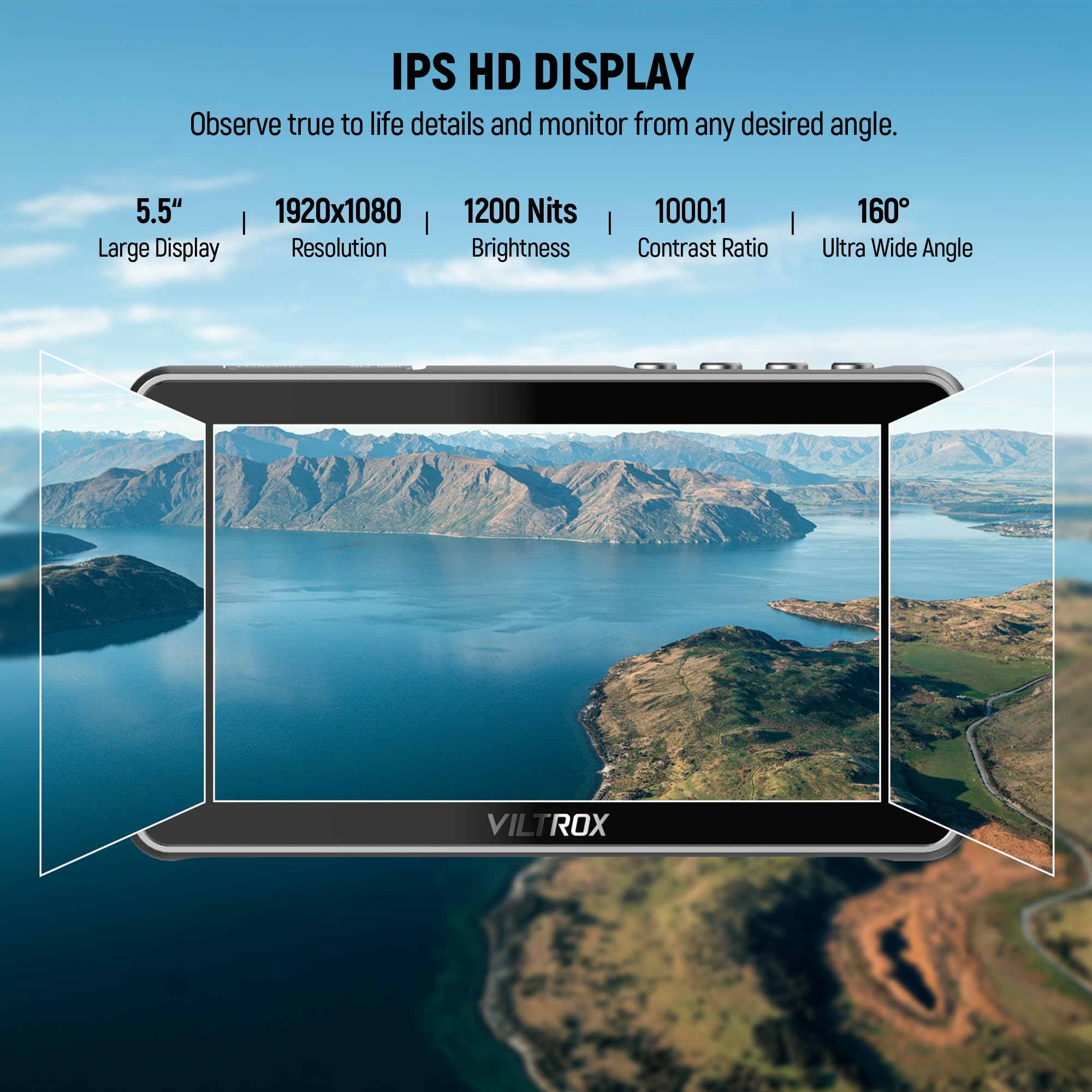

【1200 Nits High Brightness】The DC-550Pro DSLR camera monitor adopts a true 1200 nits high-brightness display screen, allowing outdoor shooting without fear of strong light and high-definition monitoring. Full HD 1920x1080 resolution, 12001 contrast ratio and 178° ultra-wide viewing angle design allow creators to enjoy clear picture quality when monitoring from different angles.

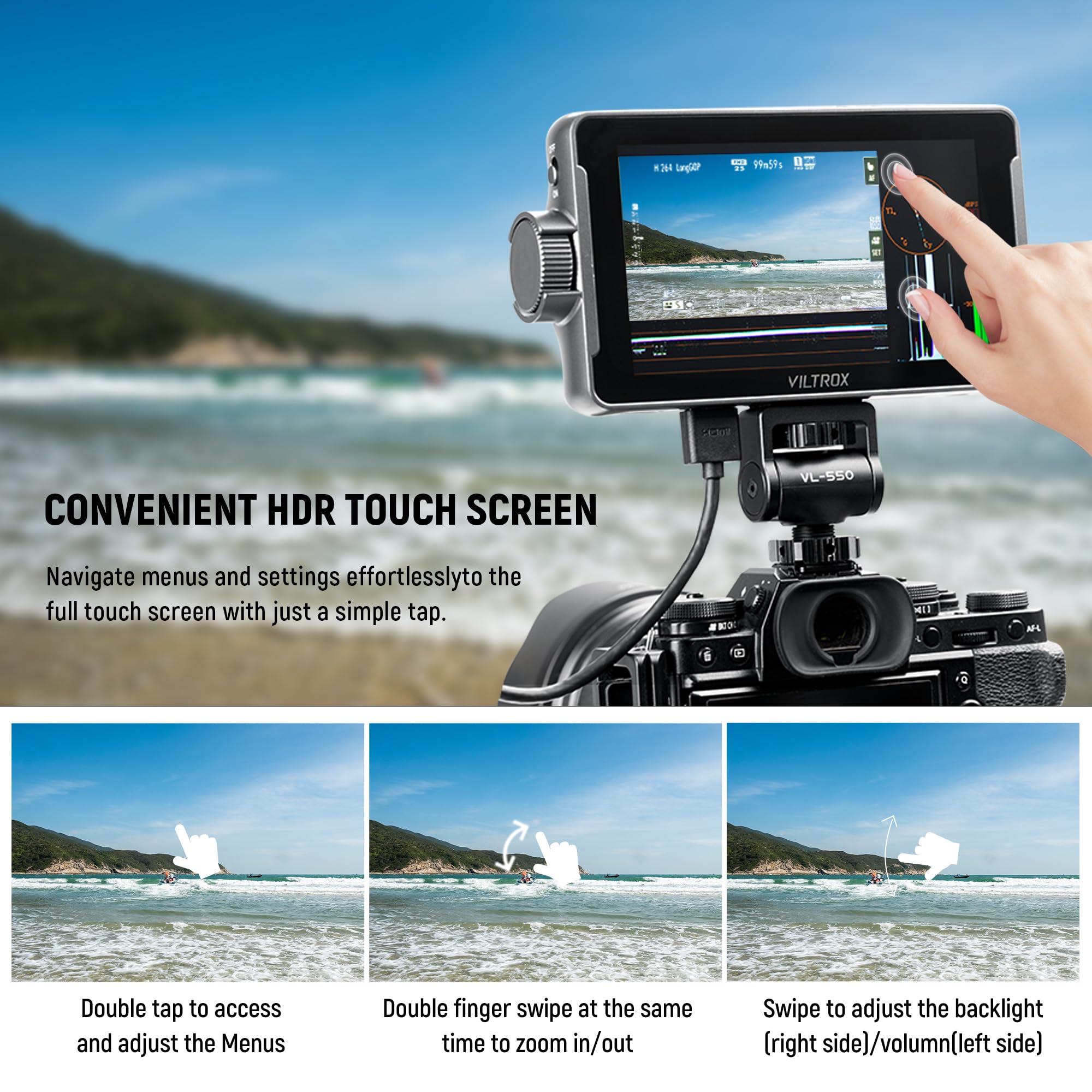

【Quick-released Hood & Compact】With detachable hood design, one second quick release, can effectively block the interference from light source, obtain good monitoring effect when filming outdoor. Four custom buttons and stepwise knobs for more accurate function setting, greatly improving photography efficiency.

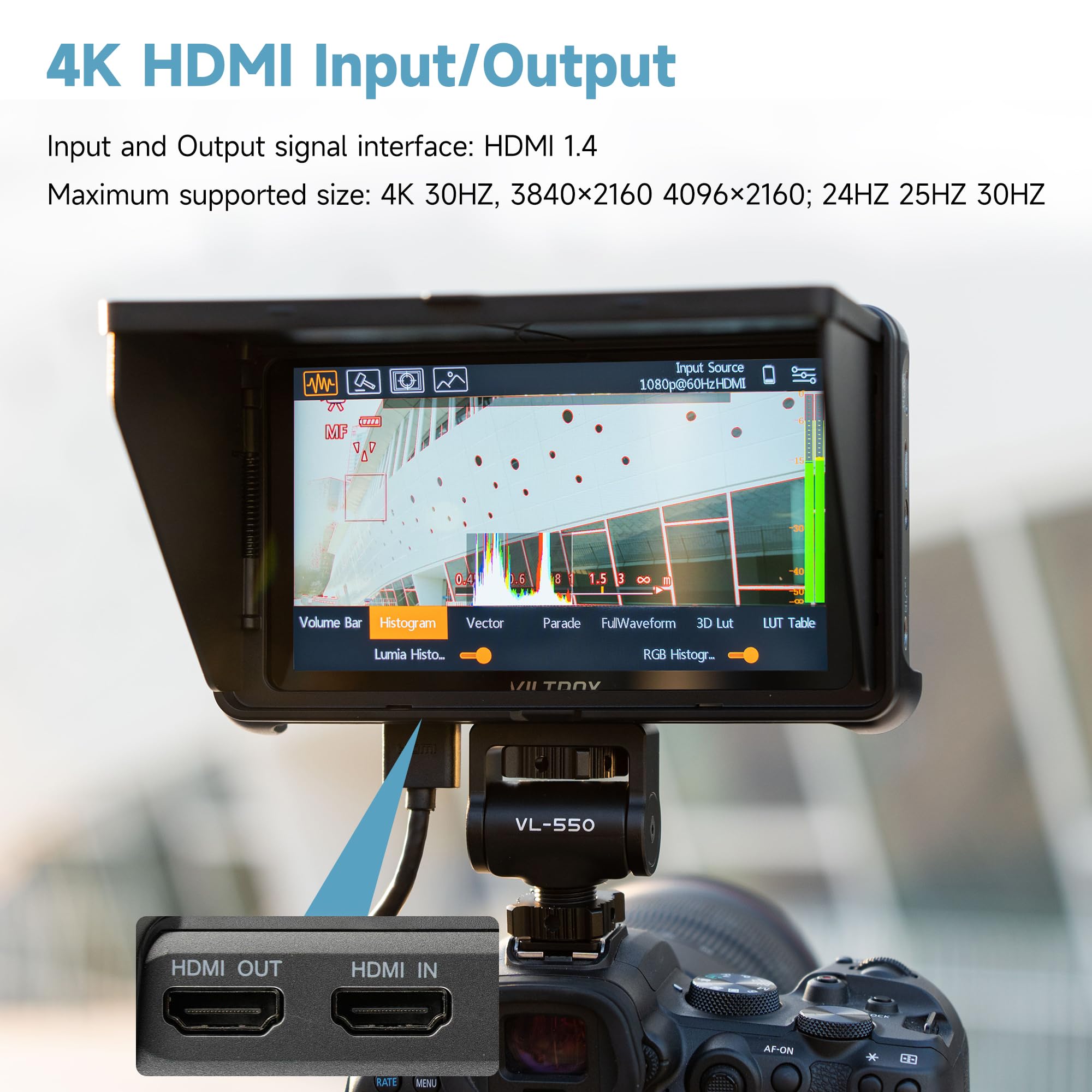

【4K HDMI Input/Output】VILTROX 4k camera monitor with convenient 4K PASS-THROUGH to send the signal (4K 30Hz, 3840X2160p, 4096X2160p (30/25/24Hz)) to other monitors, convenient for directors and photographers to monitor simultaneously. It has two HDMI (In/Output) jacks to get the video signal from camera, lossless high-definition transmission, the monitoring picture is clearer and smoother, also the color layering is better.
【Multiple Power Supply】Support NP-F series lithium battery (package come with 1pcs NP-F550 Battery) and DC IN 12-18V DC power supply, added Type-C 5V 3A power bank power supply function, a variety of power supply methods are easily solve battery life.
【Custom 3D LUT】DC-550 series video monitor has rich monitoring functions, lmport 3D LUT through SD card, which is convenient for customers to use any camera Log mode to shoot and monitor, also achieve a variety of creative styles in post-production, it also has 3 kinds RGB Parade waveform, vectorgraph, RGB & brightness histogram, auxiliary focus, audio column, image flip, false color etc.

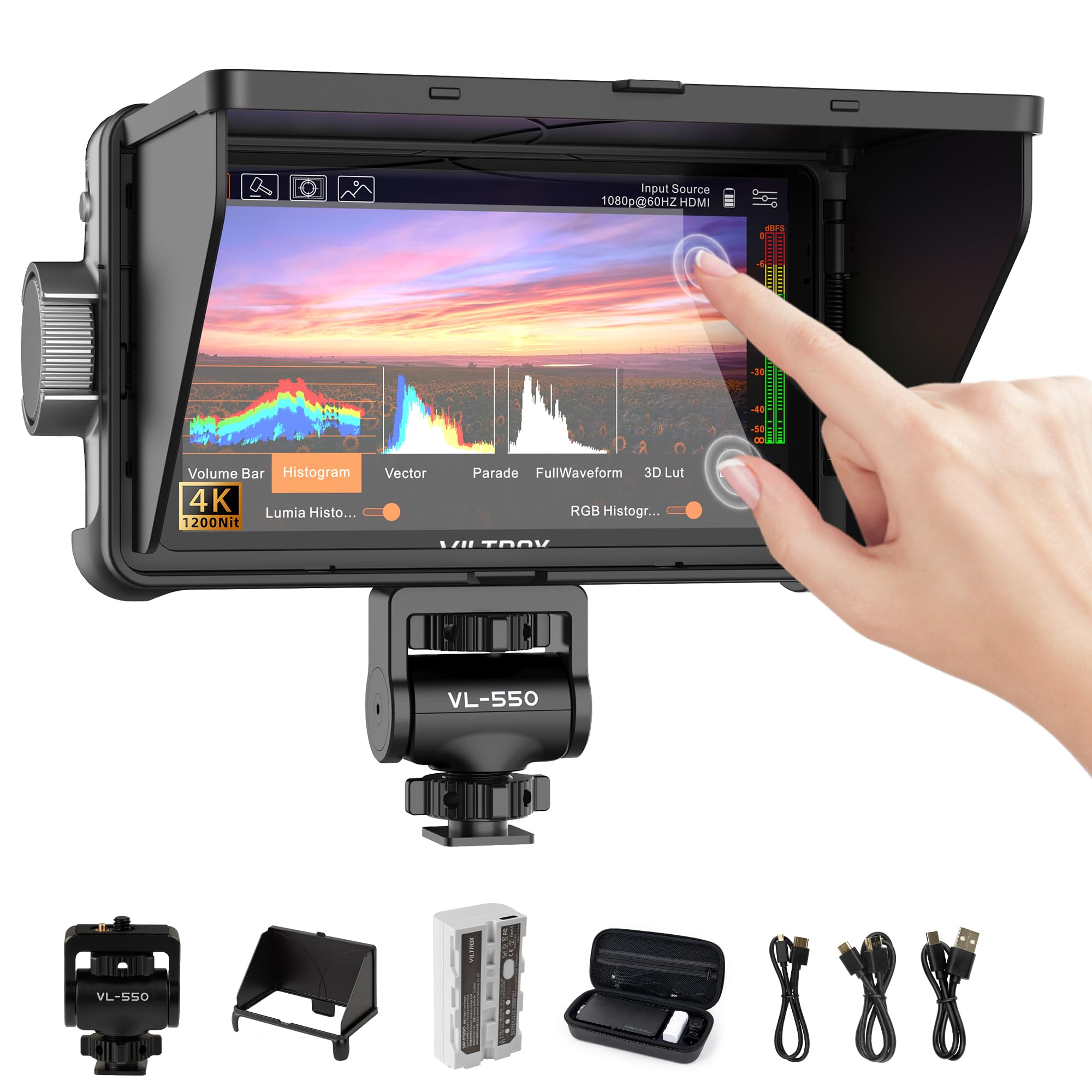

【Package and Warranty】Package Include 1x DC-550Pro Camera Video Monitor, 1x Sunshade Hood, 1x 1x VILTROX NP-F550 Battery, 1x VL-550 Cold Shoe Adapter, 1x Type-C Cable, 2x HDMI Cable, 1x Plastic Carry Case, 1x User Manual, 1x Packing Box. VILTROX provides a 1-year replacement service and friendly after-sales service support to all customers.
