5" RigVision HDR On-Camera Touchscreen Monitor - 4K HDMI Field Monitor for DSLR & Mirrorless Cameras - Perfect for Filmmaking, Vlogging & Professional Photography
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:76124905
Product Description
Compact, lightweight, and well thought out for on-set work, the 5" RigVision HDR On-Camera Touchscreen Monitor can handle DCI and UHD 4K as well as 1080p, NTSC, and PAL, via its HDMI input. Display Panel Type: IPS-Type LCD Display Size: I 5.0" / 12.7 cm Screen Resolution: I 1920 x 1080 Aspect Ratio: I 16:9 Viewing Angle: I Horizontal: 160° Vertical: 160° Touchscreen: I Yes Maximum Brightness: I 1500 cd/m2 Contrast Ratio: I 1000:1 Dot Pitch: I 0.01925 x 0.05775 mm Bit Depth / Color Support: I 8-Bit (16.7 Million Colors) Real-Time LUT Monitoring: I SDR, HDR Image Controls: I Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Waveform, Zebra I/O Video: 1 x HDMI Type A (HDMI 1.4b) Input 1 x HDMI Type A (HDMI 1.4b) Output Embedded Audio: HDMI: 2-Channel Audio: 1 x 3.5 mm Headphone Output Built-In Speaker: None Power: 1 x 5.5 mm Barrel Output Other I/O: 1 x USB 2.0 (USB Type-A) Card Slot: None Format Support Video Format: HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 576p: 50 480p: 59.94 480i 576i Power DC Input Power: 7 to 24 VDC Battery Type: 1 x L-Series (Interchangeable Mount) Power Consumption: 12 W (Maximum) Mounting: 1 x 1/4"-20 Female Dimensions (W x H x D): 3.25 x 5.6 x 1" / 8.26 x 14.22 x 2.54 cm Weight: 7.7 oz / 218 g
Product Features

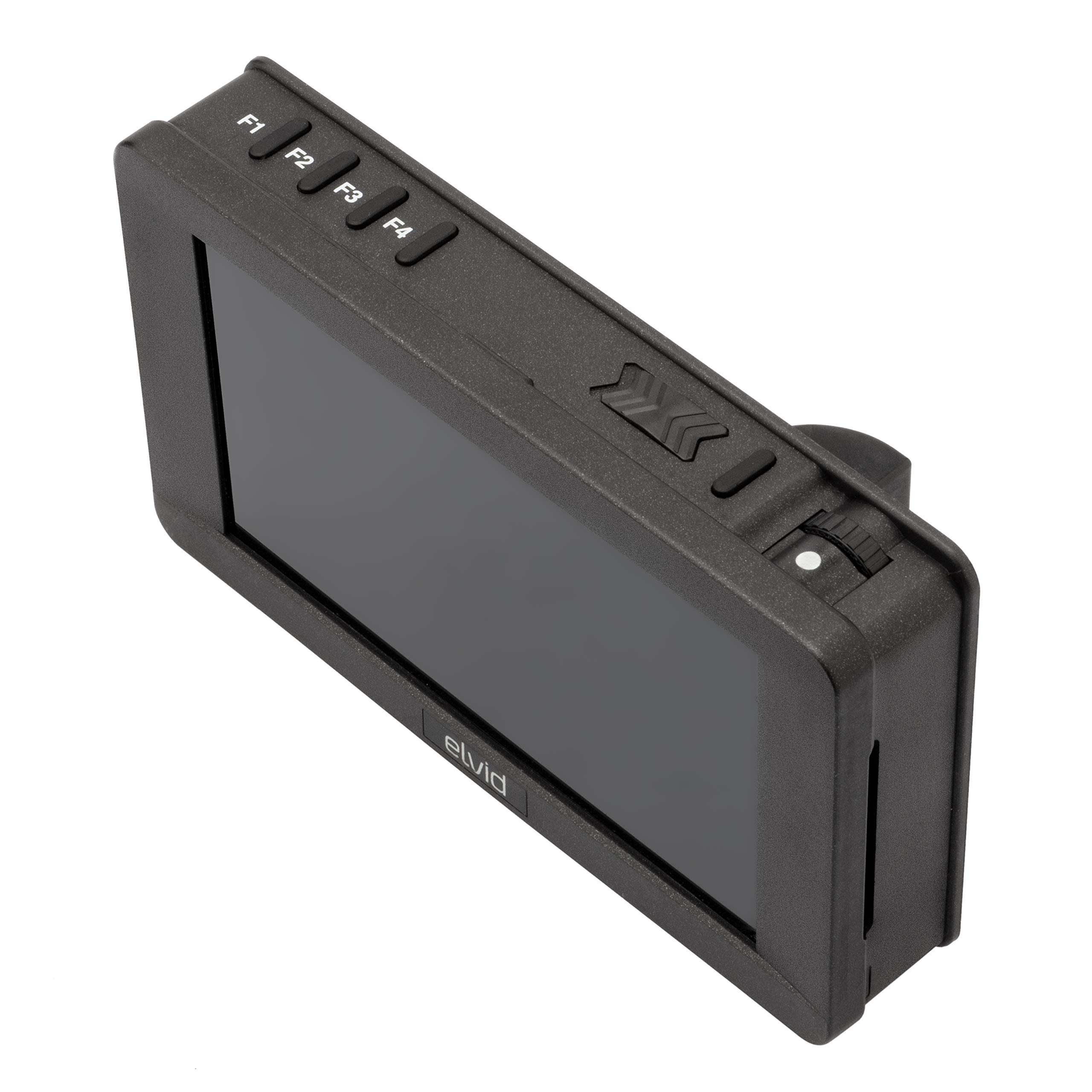

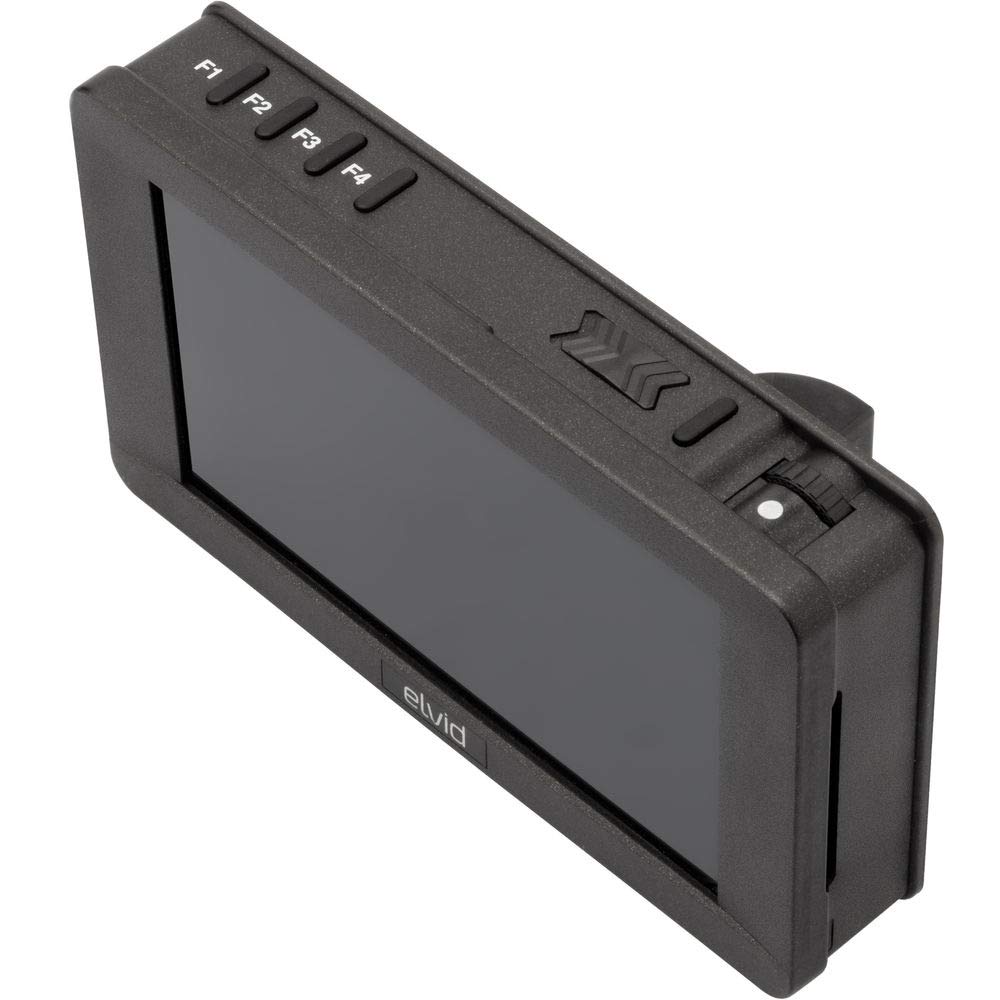

FUNCTION BUTTONS - The four function buttons (F1-4) on the top of the monitor allow you to quickly access monitor functions and they are user programmable. By default, the function buttons are set as follows - F1 - Audio meters Places an audio meter on the screen to monitor the level of incoming audio - F2 - Peaking Adds a selectable color outline to any part of the image that is in focus - F3 - False color Replaces the true colors of the image with a standard set of colors
F4 - HDR (HLG) Uses the display's luminance range to correctly display an incoming HLG signal. This function can be used in tandem with any applied LUT - TOUCHSCREEN - The monitor features a touchscreen that allows you to access the monitor's signal status, menu settings, and function displays. Double-tapping the screen turns the pixel-to-pixel function on or off. You can also use the pinch-to-zoom finger command as with most smartphones or tablets.
LUTs - This menu allows you to apply 17x17x17 .cube LUT files to color grade your footage. You can choose a LUT from one stored in the monitor's memory, or upload one from a USB flash drive. The included flash drive includes three LUTs, one each for Canon, Panasonic, and Sony cameras.

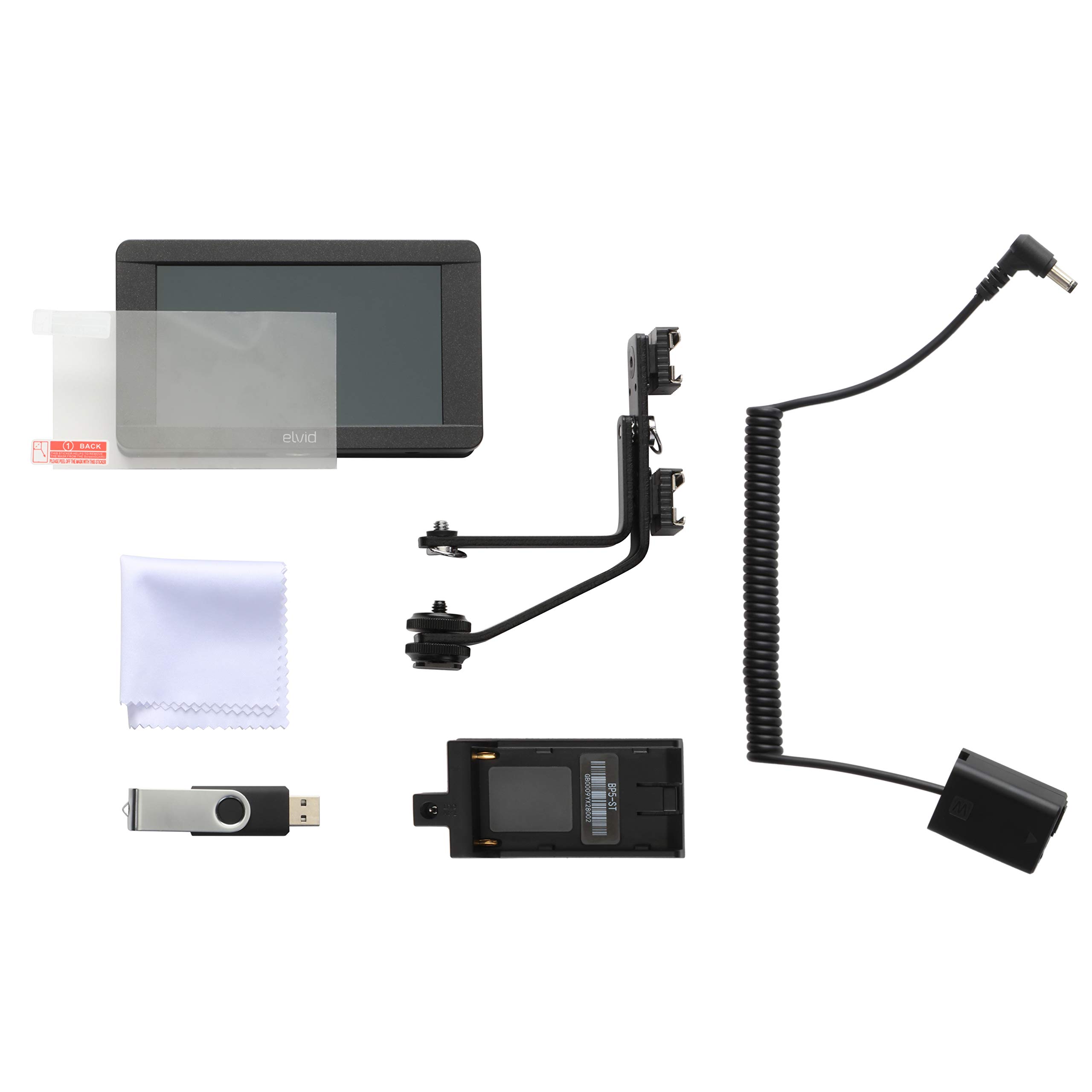

SWING ARM - The swing arm comes with two mounted cold shoes. You can remove the cold shoes from the swing arm using the included Allen wrench.
Elvid 5" 1920 x 1080 LCD Display - HDMI I/O Supports 4K, HD - 1500 cd/m² Max. Brightness - 10001 Contrast Ratio - 160° Viewing Angle - Four Assignable Function Buttons - Focus Peaking, Pixel-to-Pixel
