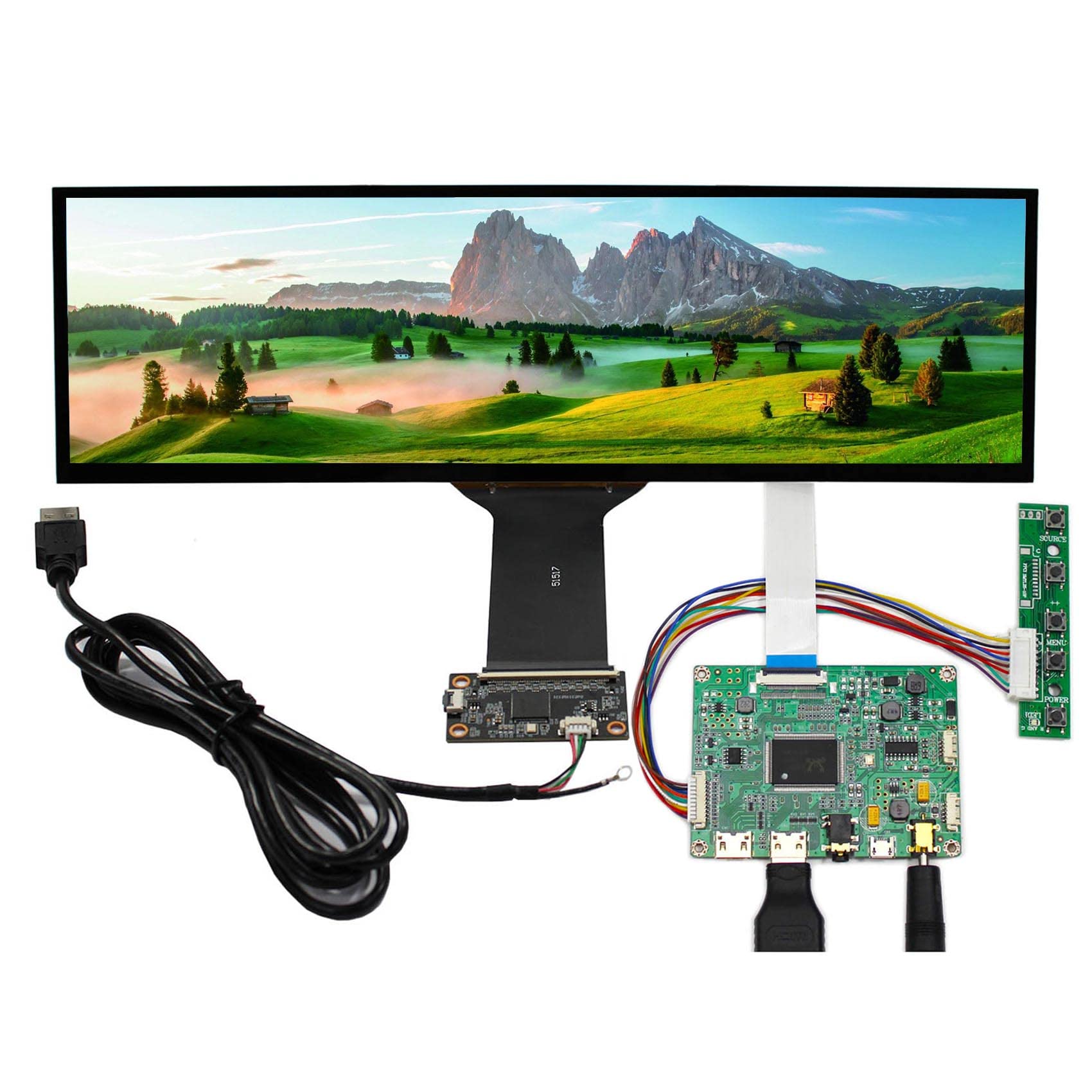

12.6 Inch NV126B5M-N41 IPS Touchscreen Monitor - 1920x515 Resolution with 2 Mini HDMI & Micro USB LCD Controller Board - Perfect for Industrial Control, Digital Signage, and DIY Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72055144
Product Description

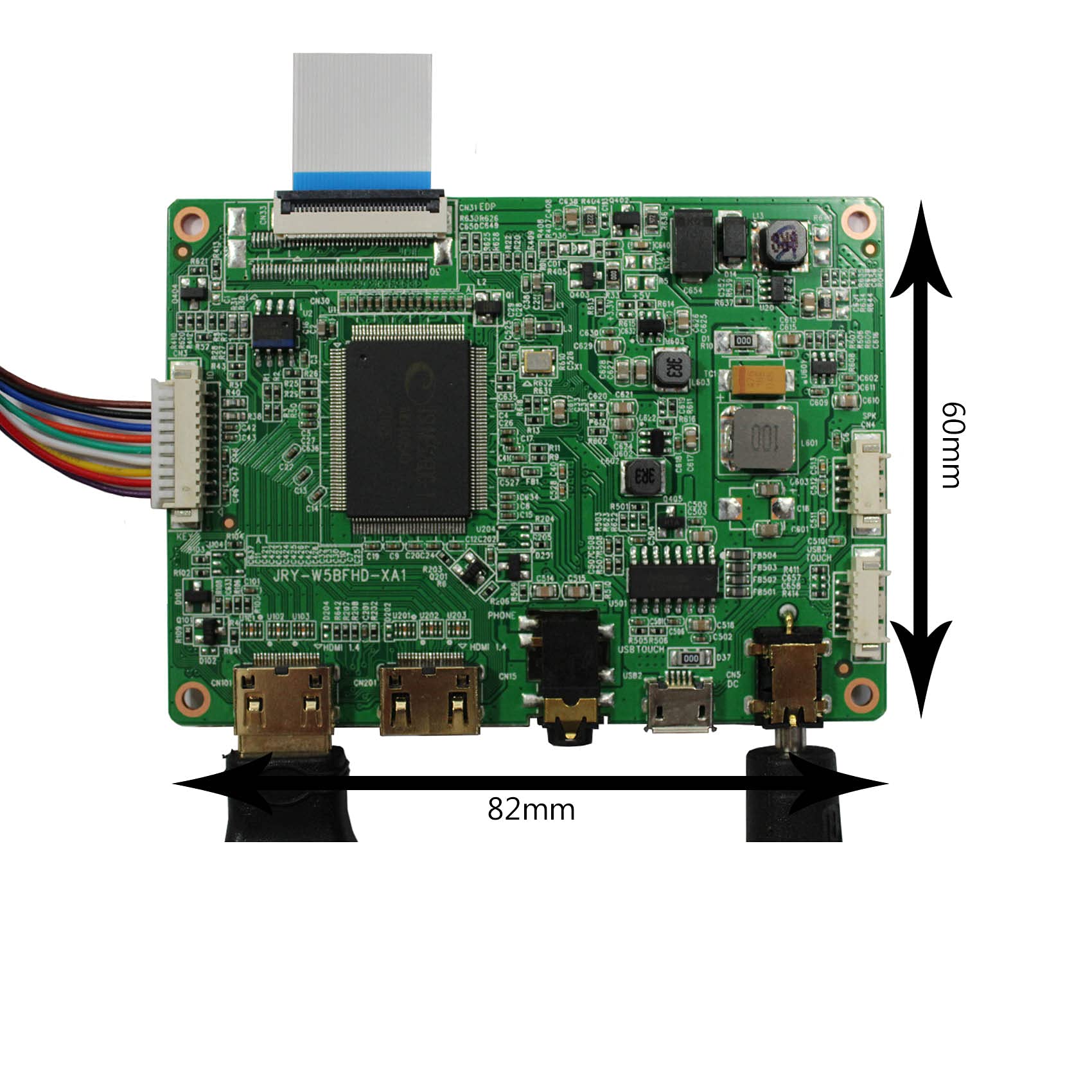

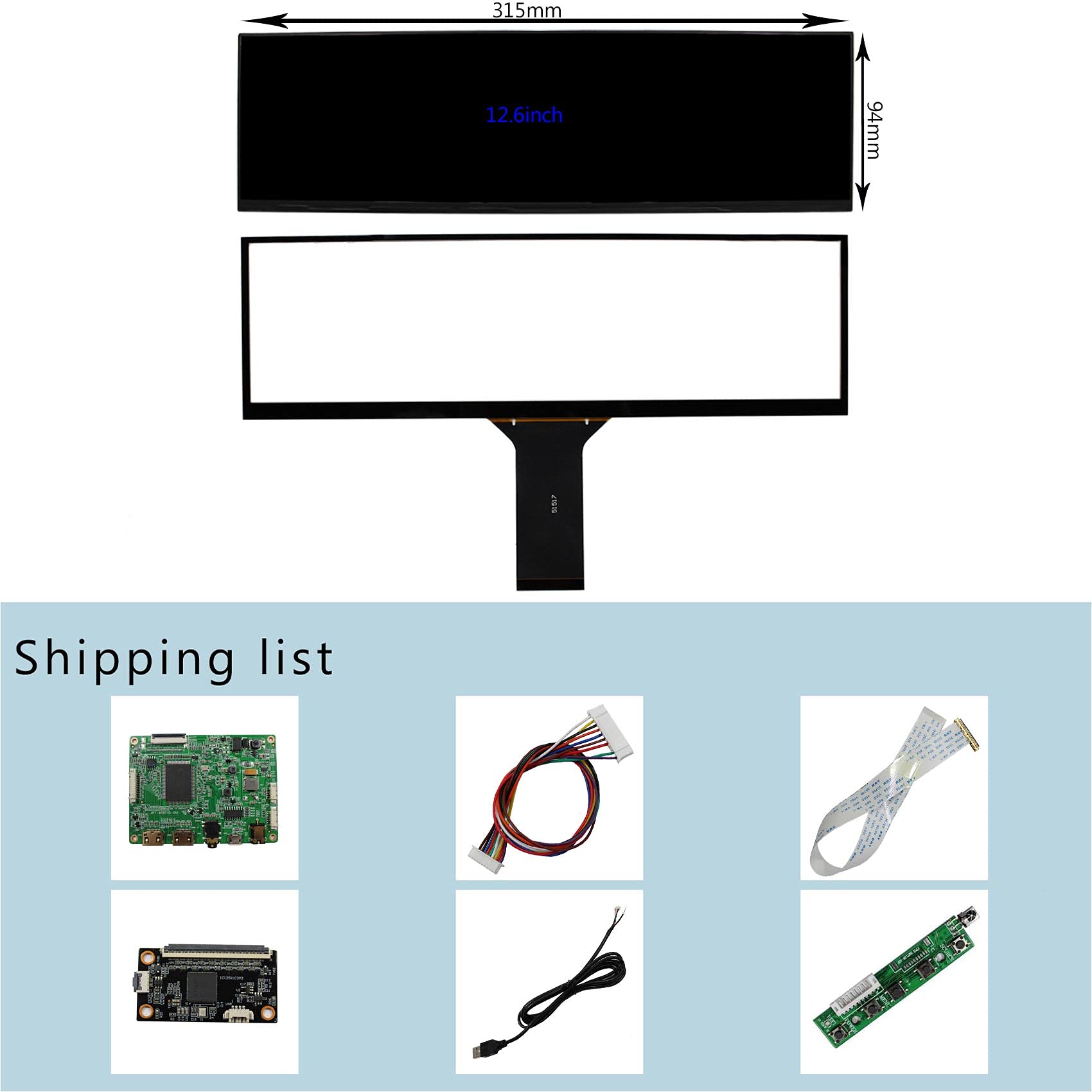

LCD Controller Board:HD-MI Board Work for 30Pin EDP LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <0.3WAudio Input: 2HD-MI MiniAudio Output: EarphoneOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 82mm x 60mm x 5mm12.6" NV126B5M-N41 1920X515 LCD Screen:Display New Mode ADS, Normally Black, TransmissiveResolution 1920RGB)×515Outline Size 315.61×94.02×5.3(H×V×D)Display Area 309.31×82.97 (H×V)Brightness 250 cd/m² (Typ.)Contrast Ratio 1200:1 (Typ.) (TM)Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes), Connector, 40pins Backlight WLEDInput Voltage 3.3V (Typ.)Packing list:1× 2 HD Mini LCD Controller VS-RTD2556HM-V1 1× 12.6inch NV126B5M-N41 1920X515 IPS Touch Screen1× Signal Cable1× Keyboard With Cable
Product Features
12.6" industrial wide IPS touchscreen monitor, with special resolution 1920x515,full viewing angle ,very bright and vivid picture,Transmissive, Display Area 309.31×82.97 (H×V)mm,Brightness 250 cd/m2,Contrast ratio 12001
Video input2mini HD-MI,Audio Output Earphone (Speaker recommend using8ohm 2W PH1.25 connector Speaker ), Please use in an insulated environment.
The design of touch panel makes the operation more convenient, NO button damage issue for after long time use,it support 10 points multi-touch technology,.,It can also protect the screen from being scratched directly.
Touch screen monitor has an impressive feature of plug-and-play that doesn’t require any driver installation. Directly connecting for the cables and ports according to link picture details ,power on ,the LED light on keyboard will be green ,then enter into HDMI signal ,with correct resolution 1920x515,the screen can work well
.Any question during using ,just keep us informed ,we will solve in 12 hours.
