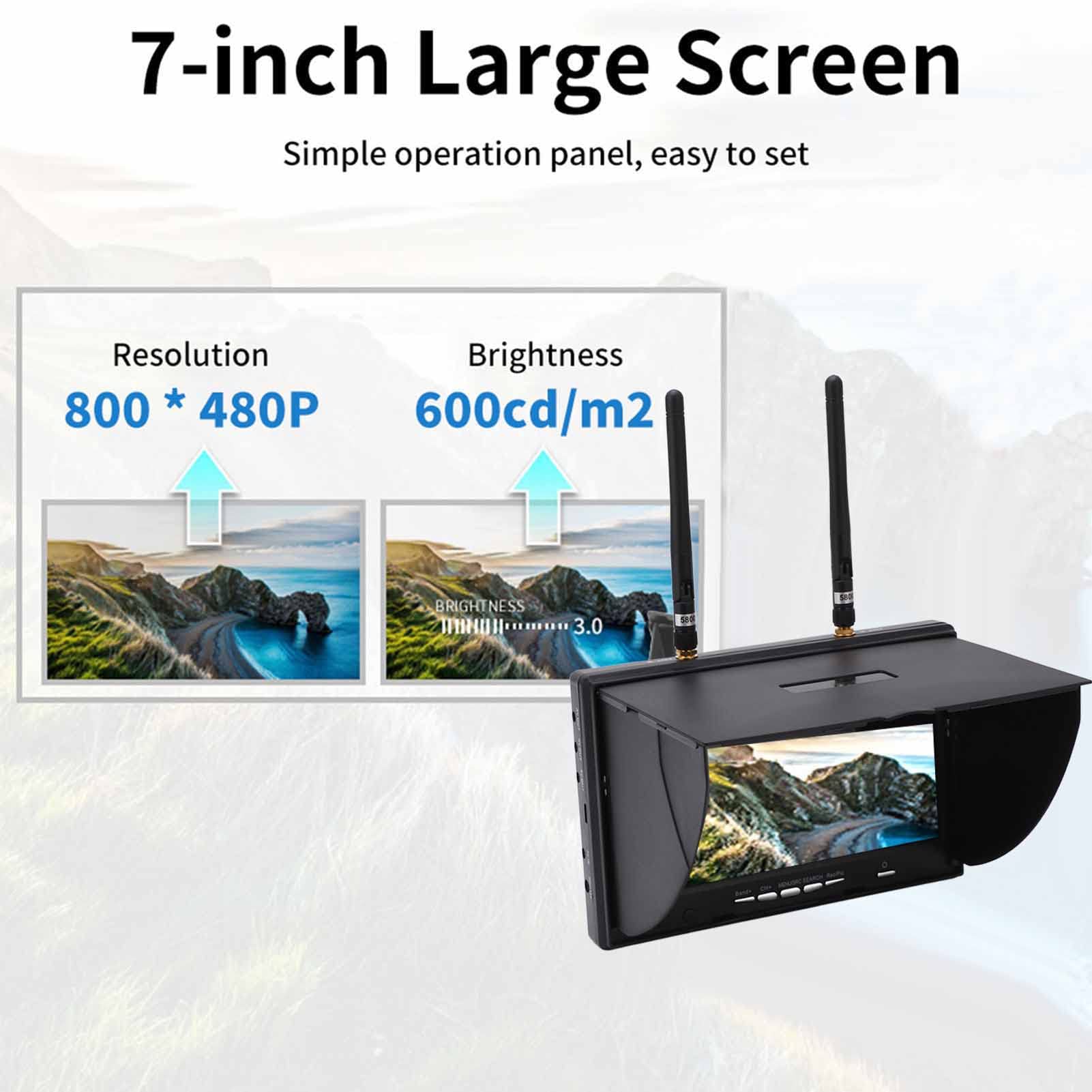

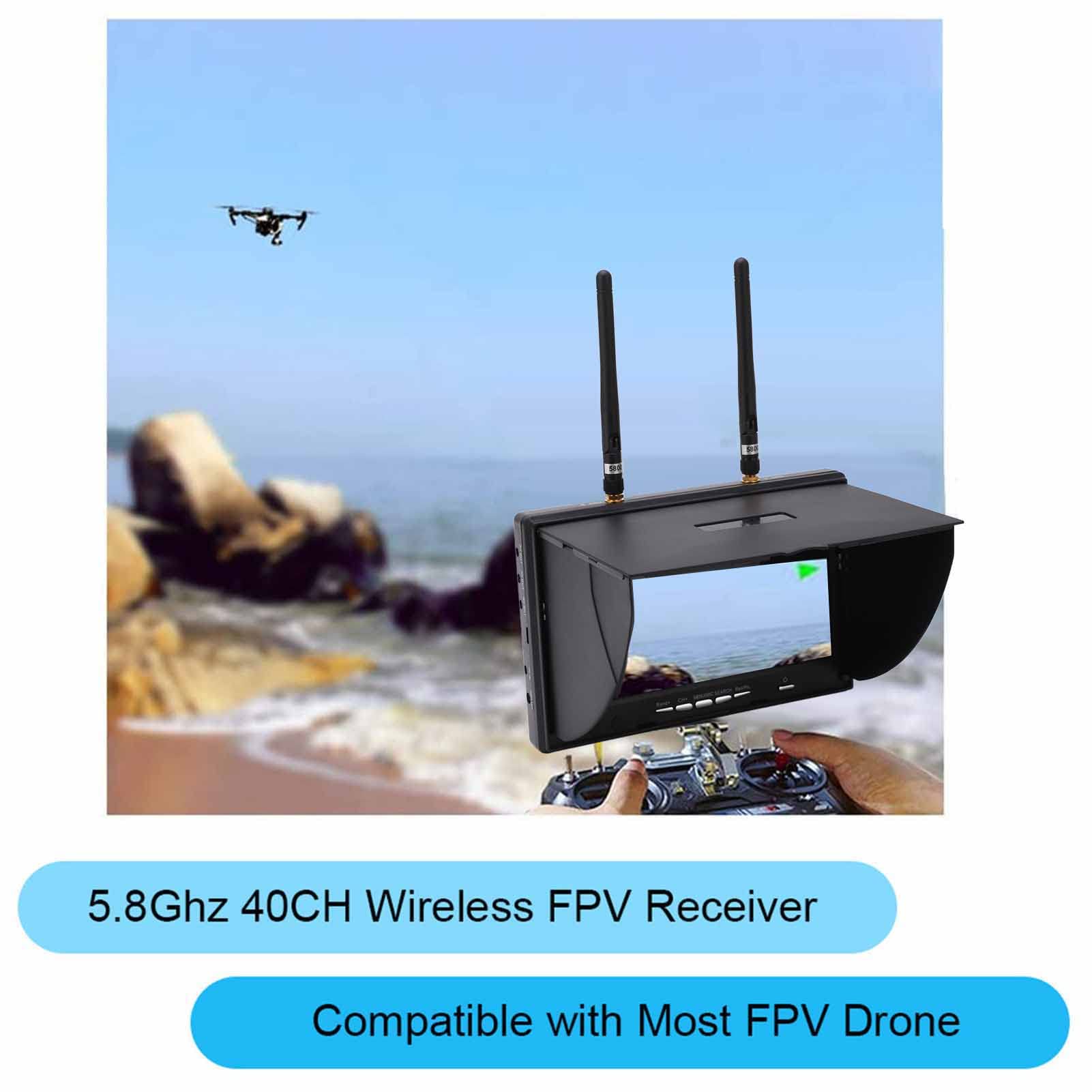

7 Inch FPV Monitor with 800x480 LCD Screen, 5.8GHz 40 Channels Dual Receiver for Drone Racing - Auto Antenna Switching, Ideal for FPV Drones, Quadcopters and RC Aircraft Flying

Product Description

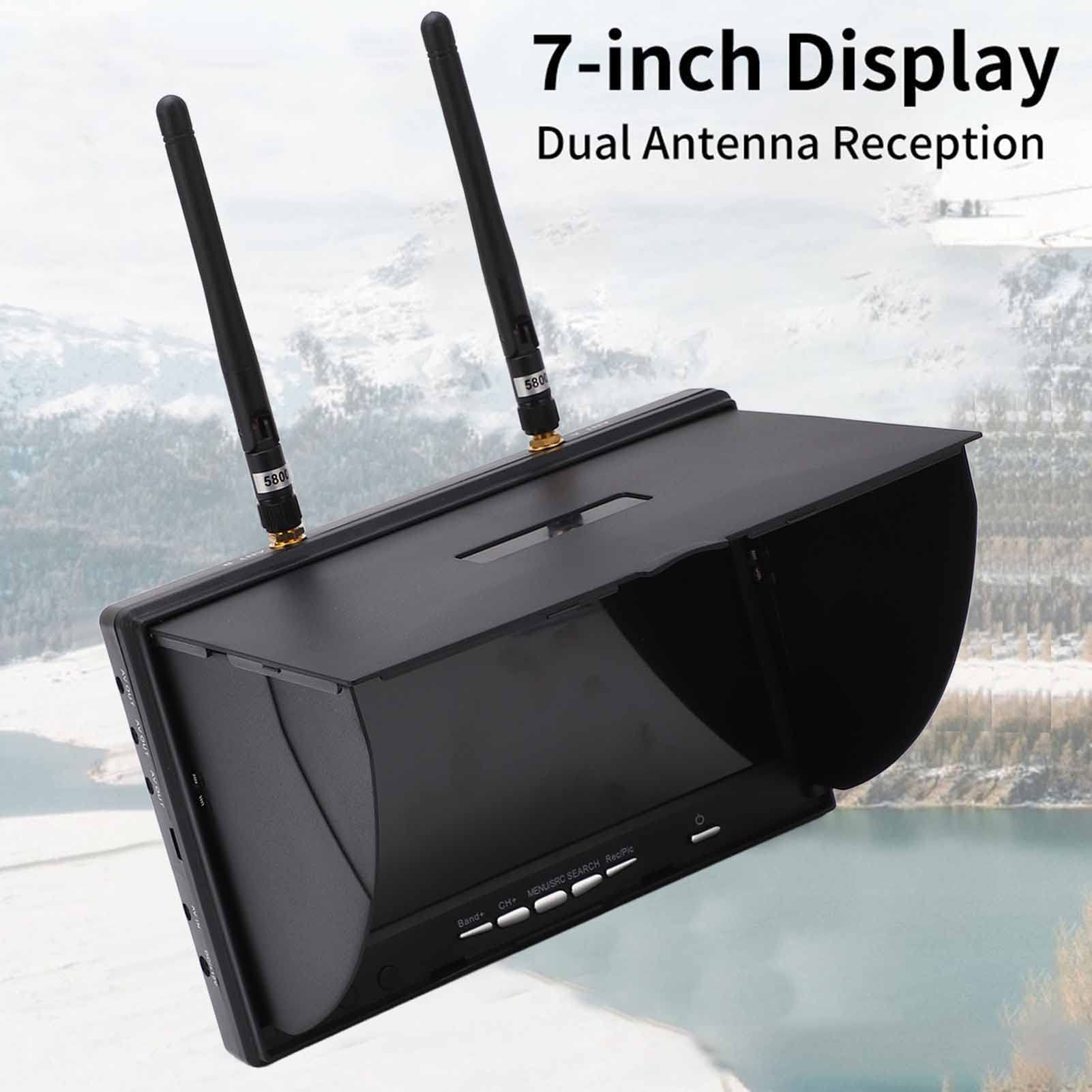

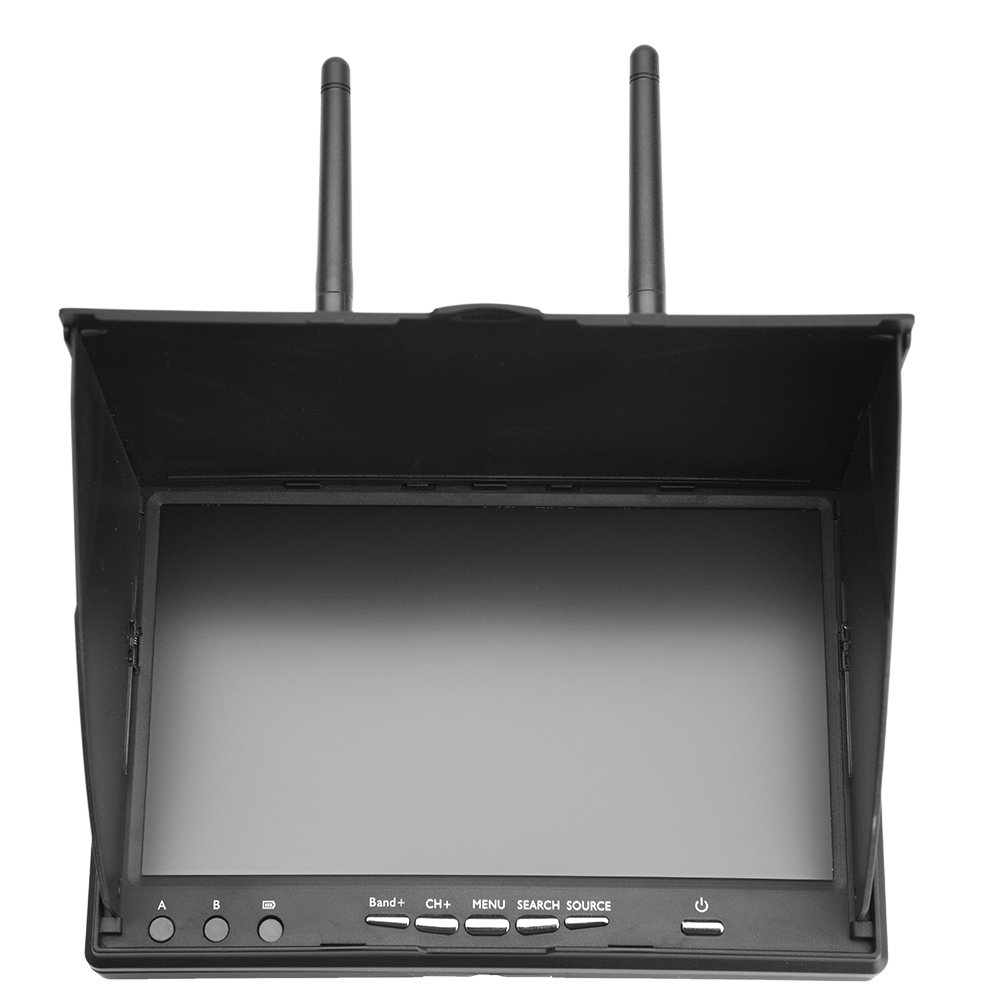

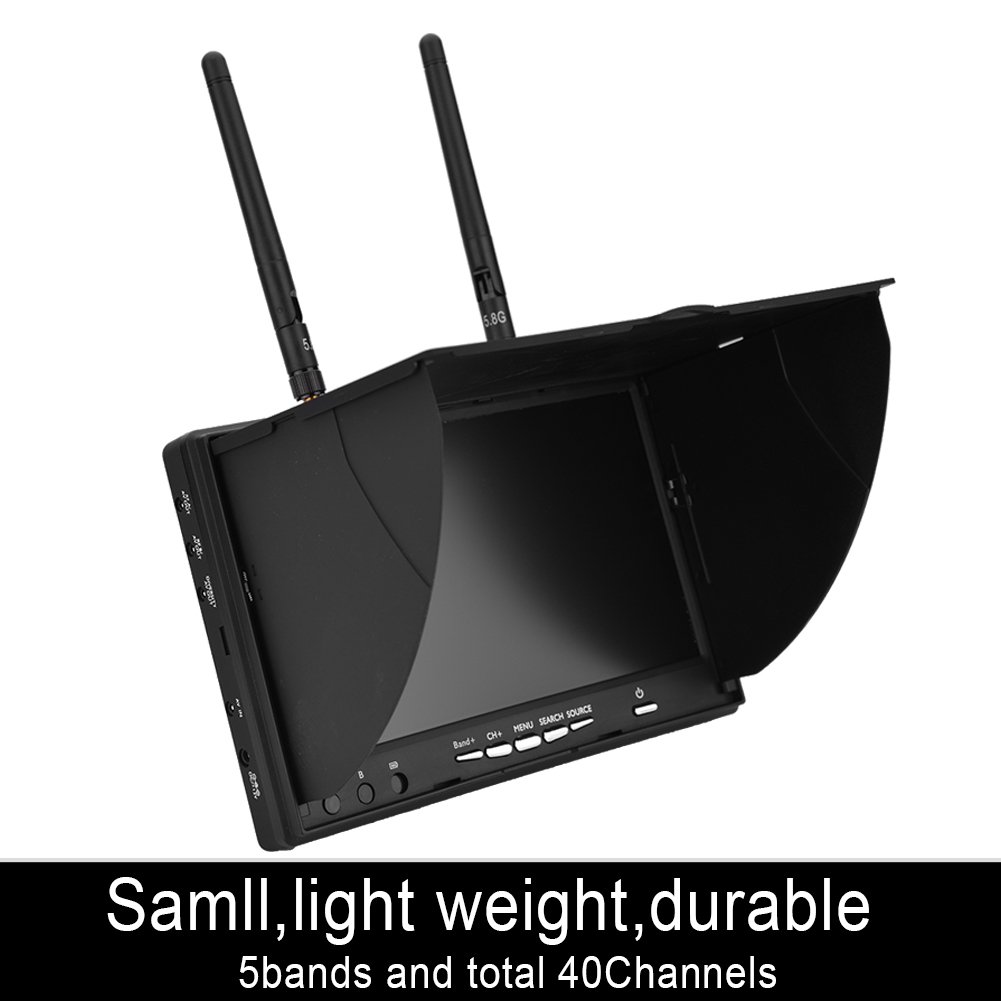

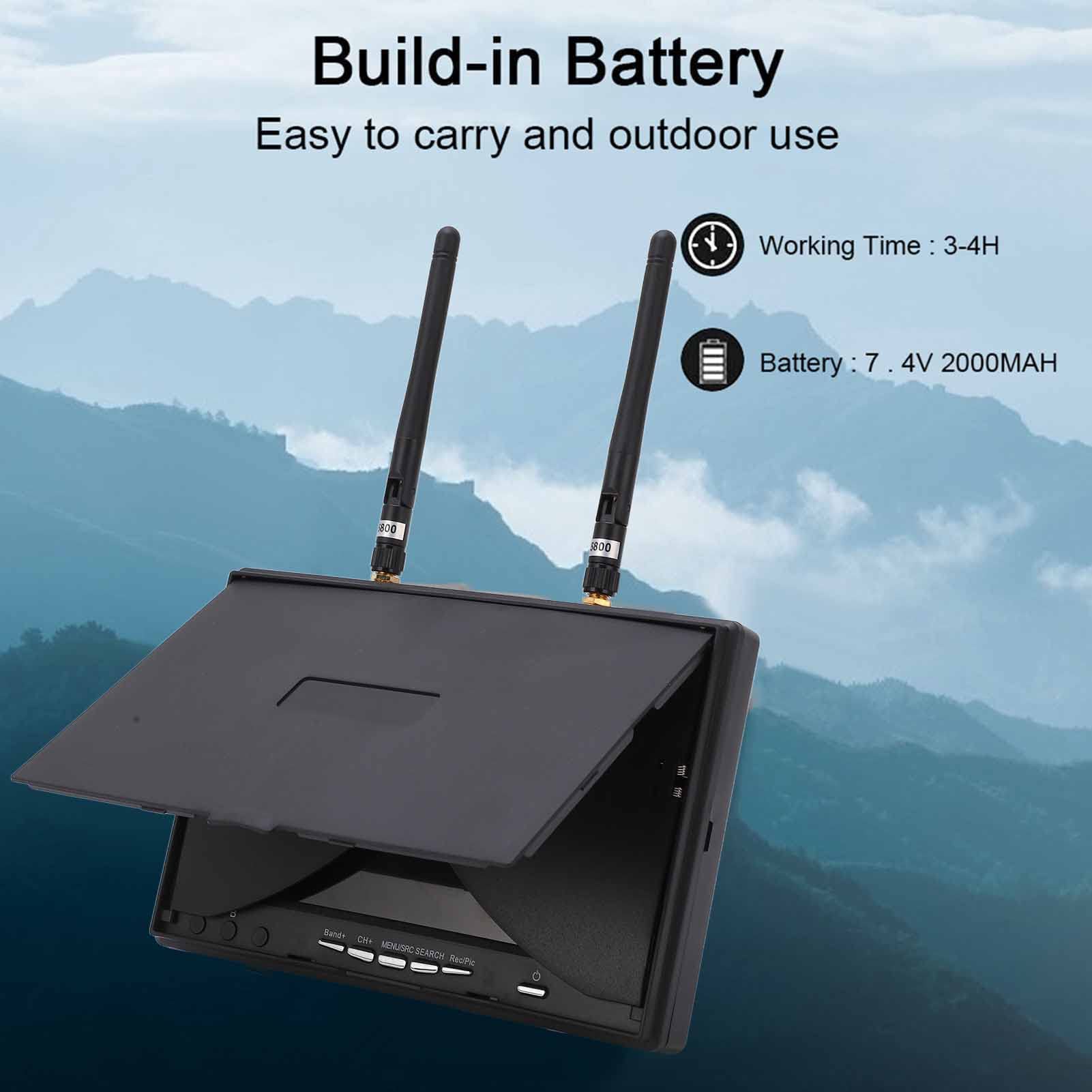

Features: This LCD Screen FPV receiver monitor with stable performance and clear image quality. Built-in dual receiver automatically for best reception automatic antenna switching, and it can receive 2 different channels at the same time. Small size and lightweight, a simple and effective accessory for FPV drone. Built-in dual receiver automatically for best reception automatic antenna switching.Can receive 2 different channels at the same time.5 bands and total 40 Channels.Built-in battery, easy to carry for outdoor use.A key to automatic signal search, simple and easy to operate.With stable performance and clear image quality.Small size and lightweight, a simple and effective accessory for FPV drone. How To Use: 1) A AV OUT: A receiving AV signal output, it must be in A mode. 2) B AV OUT: B receiving AV signal output, it must be in B mode. 3) DIVERSITY AV OUT: AV signal output received by DIVERSITY, DIVERSITY mode is required. 4) DC / + 12V DC IN, + 12V power supply, the working current of the device is 650Ma @ 12V, the maximum charging current of the built-in battery is 800mA @ 12V; if the device is working while charging, please pay attention to choosing a charging device with a rated current greater than 2A / 12V . 5) The battery has a built-in 7.4V 2000mAH high-capacity polymer battery. When the battery is charged, the unit marked with the battery in the lower left corner of the device will light up after the charge is completed, here is a bright green LED; If not used for a long time, please charge the device every four months to protect the battery. Note: We will provide an adapter for you according to different country standard and ensure its normal use.If the device is not used for a long time, please charged once every four months in order to protect the battery. Specifications: Condition: 100% Brand New Item Type: FPV Receiver Monitor Screen Size: 7inch Resolution: 800 x 480 Brightness: 600cd/m2 View Angle: 140/120 degree(Horizontal/Vertical) Working Voltage: DC7-16V Battery: Li-Polymer Battery 2000mAH/7.4V(Built-in) Power Consumption: Maximum 650mA at 12V Battery Charging Current: 850mA at 12V(Maximum) Working Temperature: -10℃ ~ +65℃ Size: Approx. 180 x 120 x 50mm / 7.1 x 4.7 x 2inch(Note: Sunshield Height: 28mm / 1.1inch) Package Weight: Approx. 853g Package Include: 1 x FPV Receiver Monitor, 1 x Adapter, 2 x Antenna, 1 x Audio Cable, 1 x Cable, 1 x Wiping Cloth, 1 x Manual
