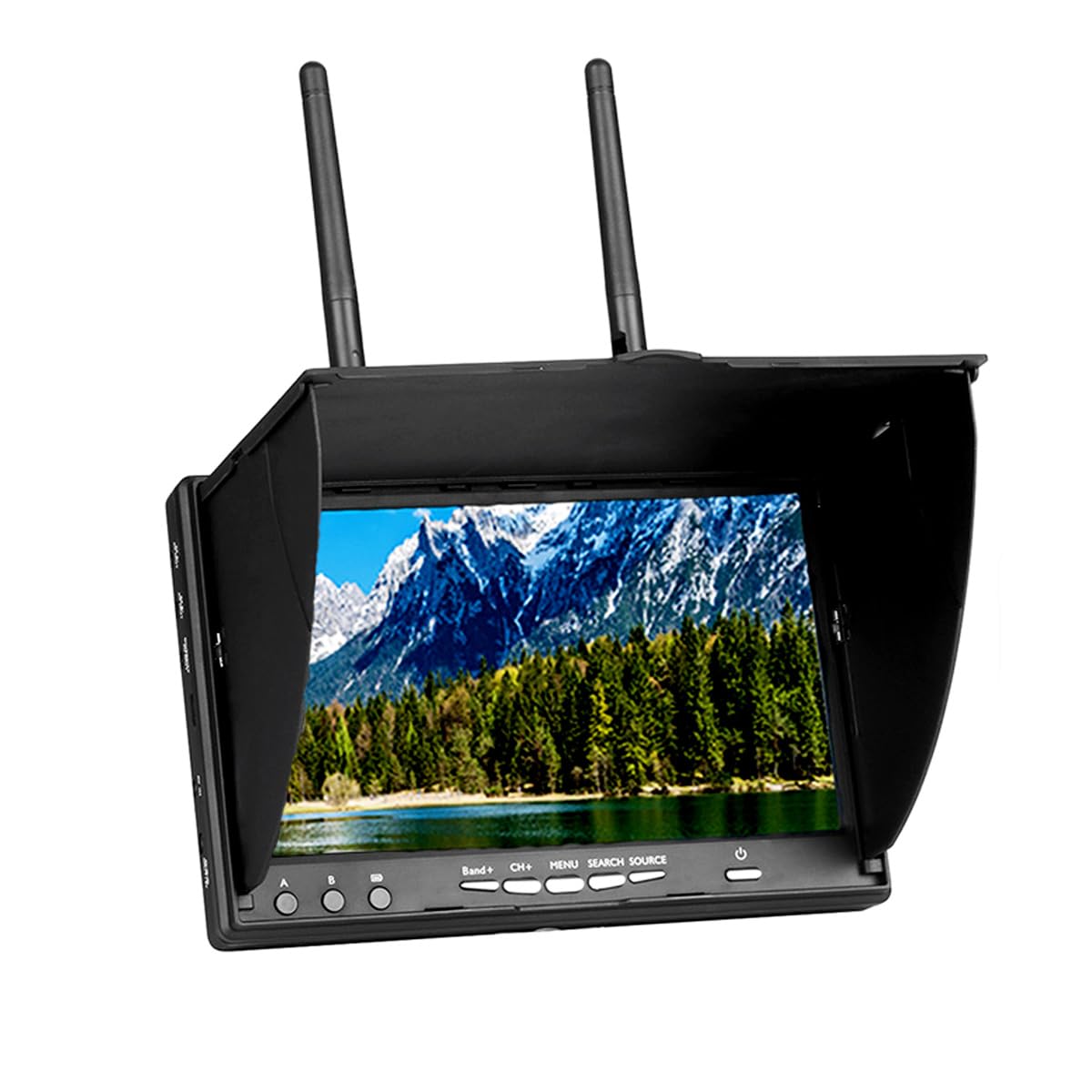

SoloGood 5.8Ghz 7 Inch FPV Monitor with DVR - 40 Channels 800x480 LCD Screen Receiver with Built-in Battery for FPV Drones, Quadcopters, RC Cars | Perfect for Aerial Photography, Racing, and Remote Control Hobbies

Product Description

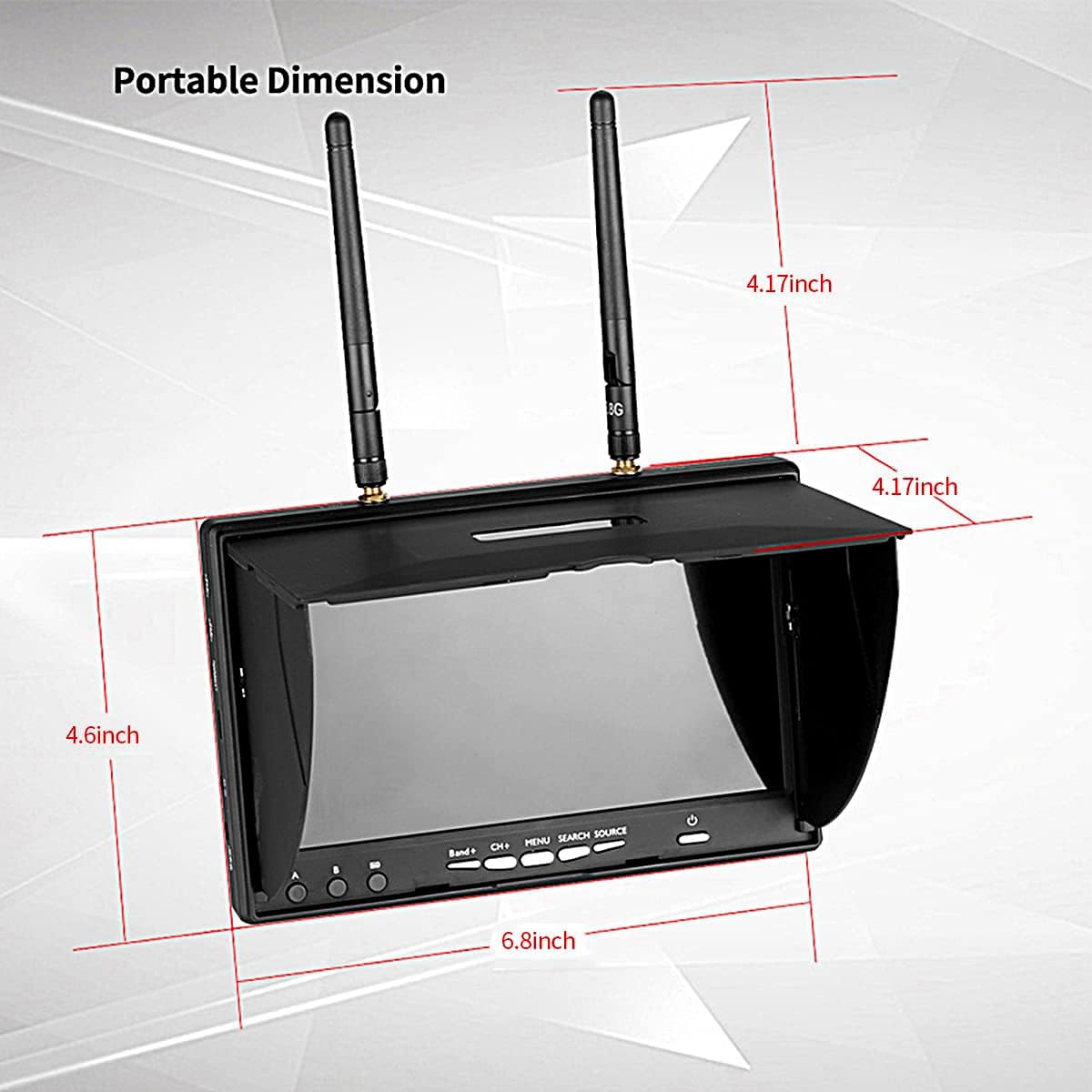

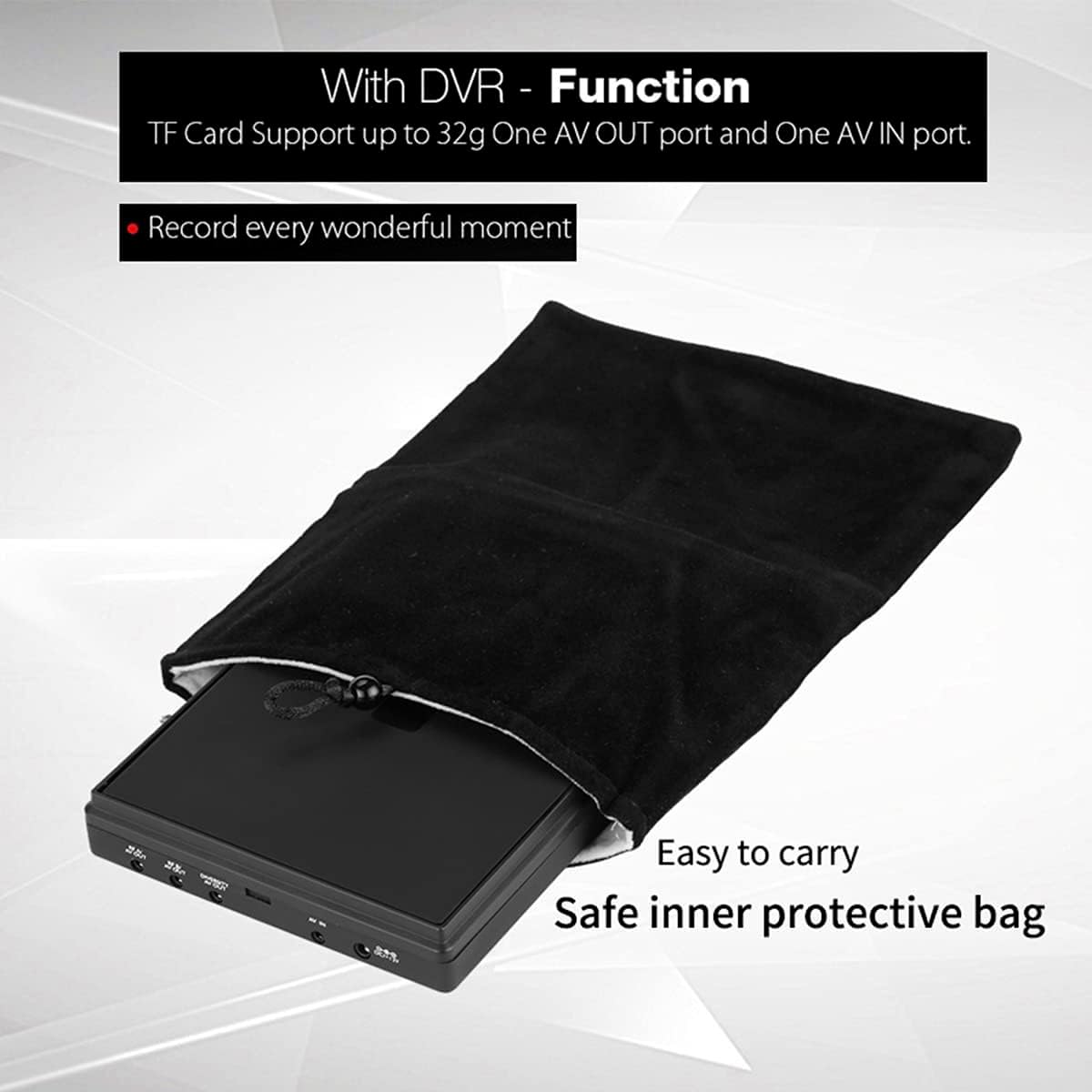

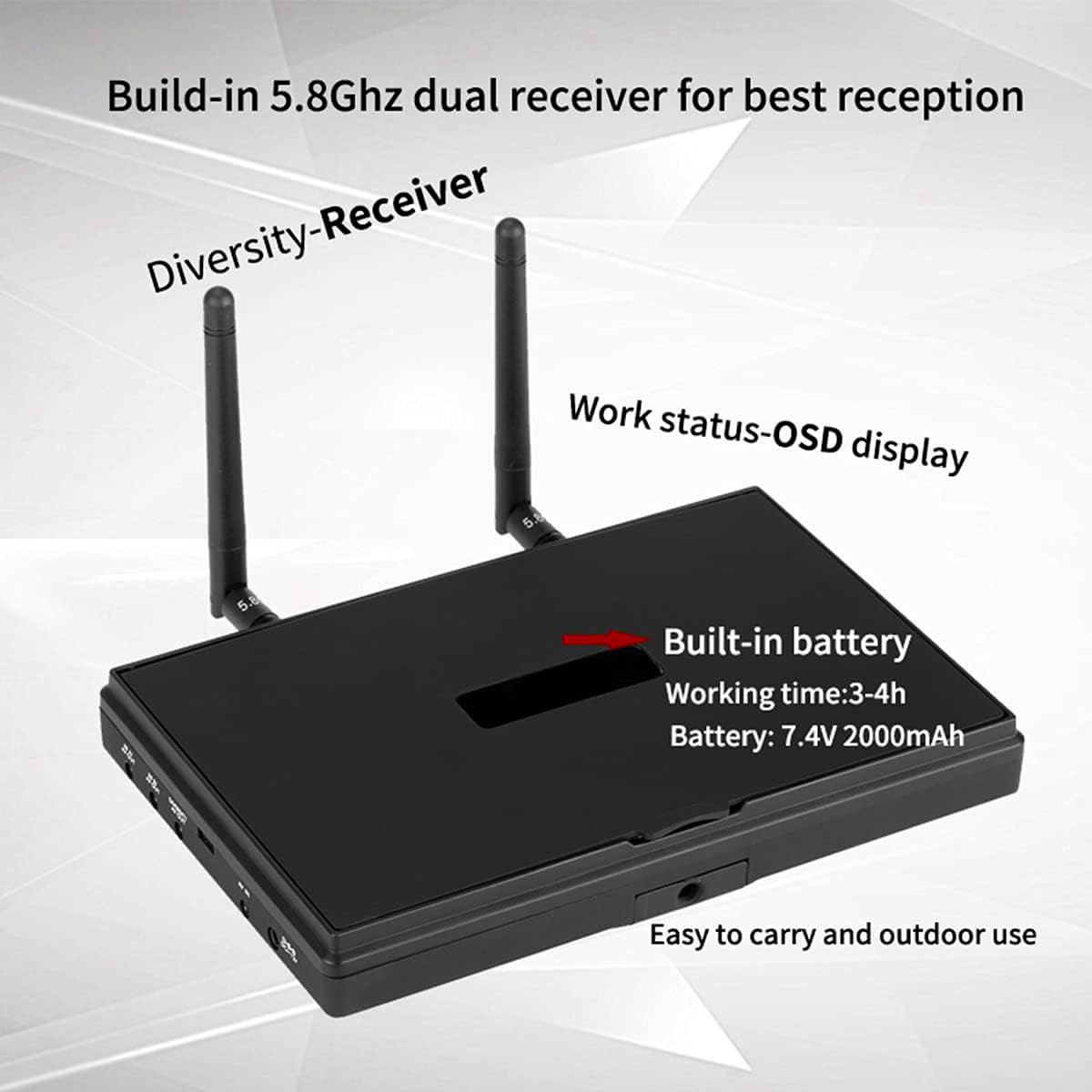

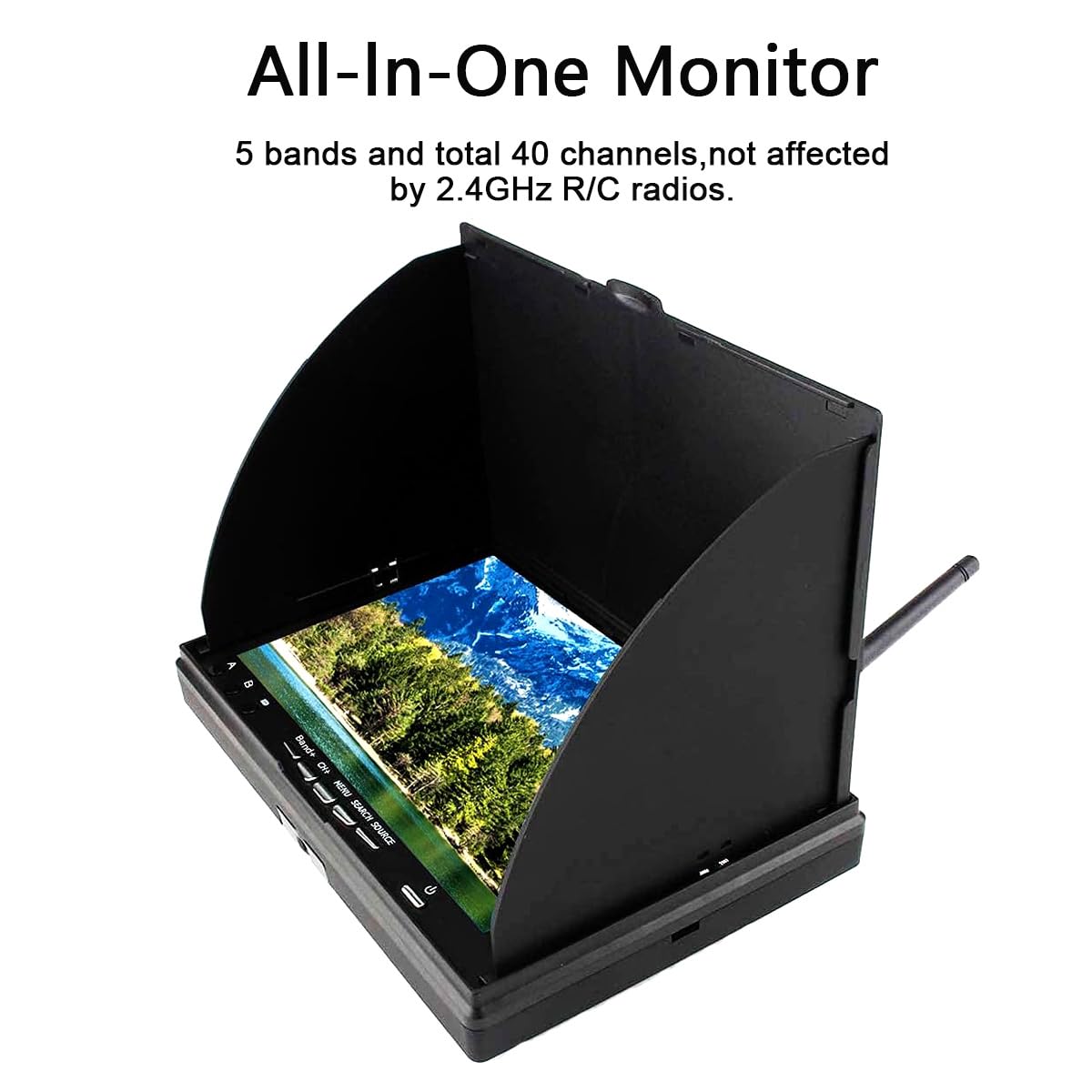

Specification:Item Name: LCD5802D Monitor with DVRBuilt-in 5.8Ghz Dual diversity receiver automatically for best receptionBuilt-in 2CH 5.8Ghz AV output and 1CH AV inputBuilt-in high performance Li-POLYMER Battery : 2000mAH/7.4VWork status OSD display : RSSI indication ; Battery indicator ; Channel indicationA key to automatic signal searchSupport Chinese and English menuFormat: JPEG, AVIScreen size : 7”Screen type : TFT LCD Screen/long life, LED backlightResolution: 800*480Brightness : 600cd/m2View Angle: 140/120degree (Horizontal/Vertical)Size : 180mm x 120mm x 50mm ( Note : Sunshield height :28mm )Working Voltage: DC 7~16VPower Consumption : max 650 mA @12VBattery charging current : 850mA @12V ( max )Working temperature : -10℃~+ 65 ℃Connectors : RP-SMA female(outer needle)Antennas Connectors : RP-SMA male (inner hole)Support up to 32G , C10 SD CardPlug : US Features:Built-in Dual Receiver Automatically for best reception Automatic Antenna SwitchingDual buffered AV outputsNot affect by 2.4GHz R/C RadiosAV Receiver with Diversity inputsSmall, light weight, durable5 Bands and total 40 ChannelsBuilt-in battery , easy to carry and outdoor useA key to automatic signal search, Simple operationWork status OSD display: Always be aware of the device working condition Notice: It can't receive 2 different channels at the same time. Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it Note:If the devices is not used for a long time, please charged once every four months,in order to protect the battery
