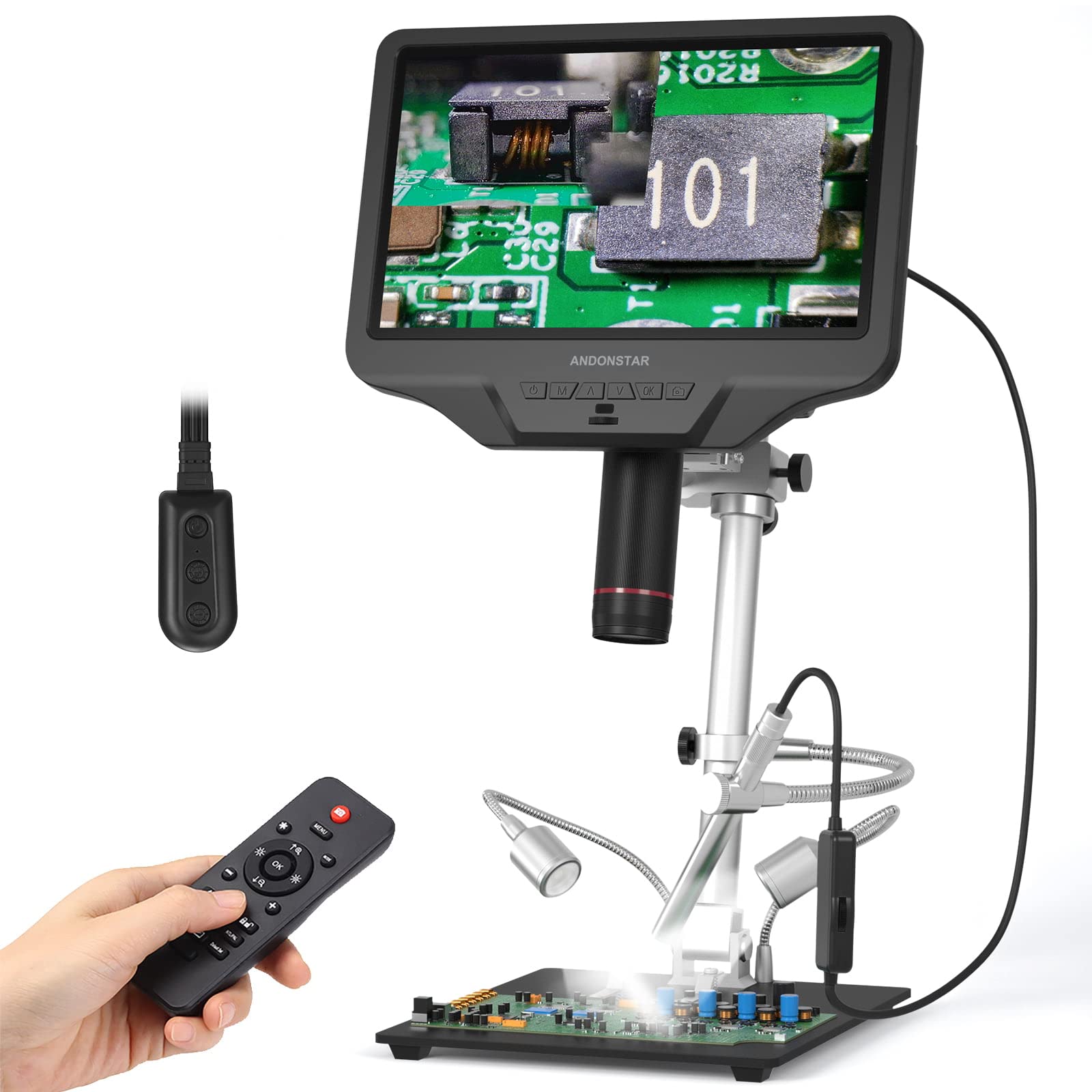

Andonstar AD409 Pro 10.1" Digital Microscope with Endoscope - HDMI Soldering Microscope with Metal Stand | USB Inspection Camera for Circuit Board & Phone Repair | Compatible with Windows PC | Perfect for Electronics Hobbyists & Professional Technicians
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:51337952
Product Description
Andonstar AD409-Pro ES 10.1'' HDMI Digital Microscope What's the difference: ·With HD Endoscope for all-around view of 360°, capture the blind area and finest details of objects ·2160P (max 120f/s frame rate) video output for clear image ·HDMI output, PC output, and WIFI output (Endoscope does not support PC output) ·Industrial-grade Metal Lens and UV Filter protecting the lens from oil and heat during the soldering or repair process ·Upgraded bracket, larger workplace Endoscope Accessories List and Applications 1. Long white tube: It can protect the endoscope when using it to inspect the bottom of the slit, the depth of the pipe, or some scenarios where it needs to be placed into other objects. 2. Black speculum: It can be used to inspect holes with a diameter smaller than the endoscope diameter (12 mm). 3. Side-view mirror: It can be used to observe the back or side of an object, such as the inner wall of a pipe. 4. Short transparent tube: It can be used to fix the object distance when observing large-area flat objects, such as: observing circuit boards, coins, reading magnification, etc. 5. Transparent speculum: It can be used to inspect holes with a diameter smaller than the endoscope diameter (12 mm). *Endoscope and accessories are not waterproof; please do not use them in water or high-temperature environments. AD409-Pro ES Upgraded Metal Bracket ·Stand size: 7*7.8*12.5 inch / 18 cm*20 cm*32 cm ·Large metal workbench, higher working distance ·The angle of the bracket can be adjusted front and rear, and the arm beam can be rotated 360° horizontally Industrial Metal Lens and Protective UV Filter ·Equipped with an industrial-grade material metal lens, resistant to high temperature without deformation when doing soldering work. ·The UV filter which has been assembled on the lens protects the lens from heat, smoke, and dust during the repair and soldering process. It also extends the service life of the microscope. Multiple Outputs Ways, Wide Application ·Supports Outputs: HDMI output, PC output, and Wi-Fi output ·Wide Application: Andonstar AD409-Pro ES Digital Microscope can be widely used in PCB soldering, circuit board inspection, watch/phone repairing, coin collection, and so on. Product Highlights Two Lens Images on One Screen When plugging in the endoscope, it will get two lens images: microscope image and endoscope image. Just need to press "NTL/PLA" on the remote control to switch the lens image. Then use the endoscope to observe the blind areas or the tiniest details of the product. Convenient Remote Controller You can take photos and videos, zoom in and zoom out via the infrared remote control. A convenient and practical assistant for long-distance operations, suitable for demonstrations and other occasions. Easy to Use By rotating the focusing wheel to focus, and rotating the bracket knob to adjust the height of the lens. Easy to use and set up in just a few steps. Adjustable LED Light Two side lights on the base can be flexibly adjusted angle, through the switch cable to adjust the brightness, allowing to see the product clearly. The endoscope has built-in lights, which can be adjusted the brightness through the light regulator to adapt different light environments. AD409-Pro ES Basic Parameters Screen size & Resolution 10.1 inch, 1280*800 Image sensor 4 Mega Pixels HD Sensor Video output UHD 2880X2160 24FPS, FHD1920X1080 60FPS/30FPS, HD1280X720 120FPS Video format MP4 Magnification Ratio Up to 300X (27-inch HDMI monitor output) Photo resolution MAX 24M (5600*4200) Photo format JPG Minimum focus distance 5 cm Frame Rate Max 120f/s (under 600 Lux Brightness & HDP120) Storage Micro-SD card up to 64G (not included, class 10 high-speed card is recommended) PC support Yes, for Windows XP/7/8/10, PC software with Measurement (Endoscope not supported) HDMI Output Support Power source USB 5V 2A DC Stand size 18*20*32cm Package Contents Microscope monitor, Metal base (with light), UV filter (assembled on the lens), Remote control, Power adapter, Wrench, Metal clips, Beam bracket, Metal column, Adjustable arm, Switch cable, HDMI cable, USB cable, Instruction.
Product Features

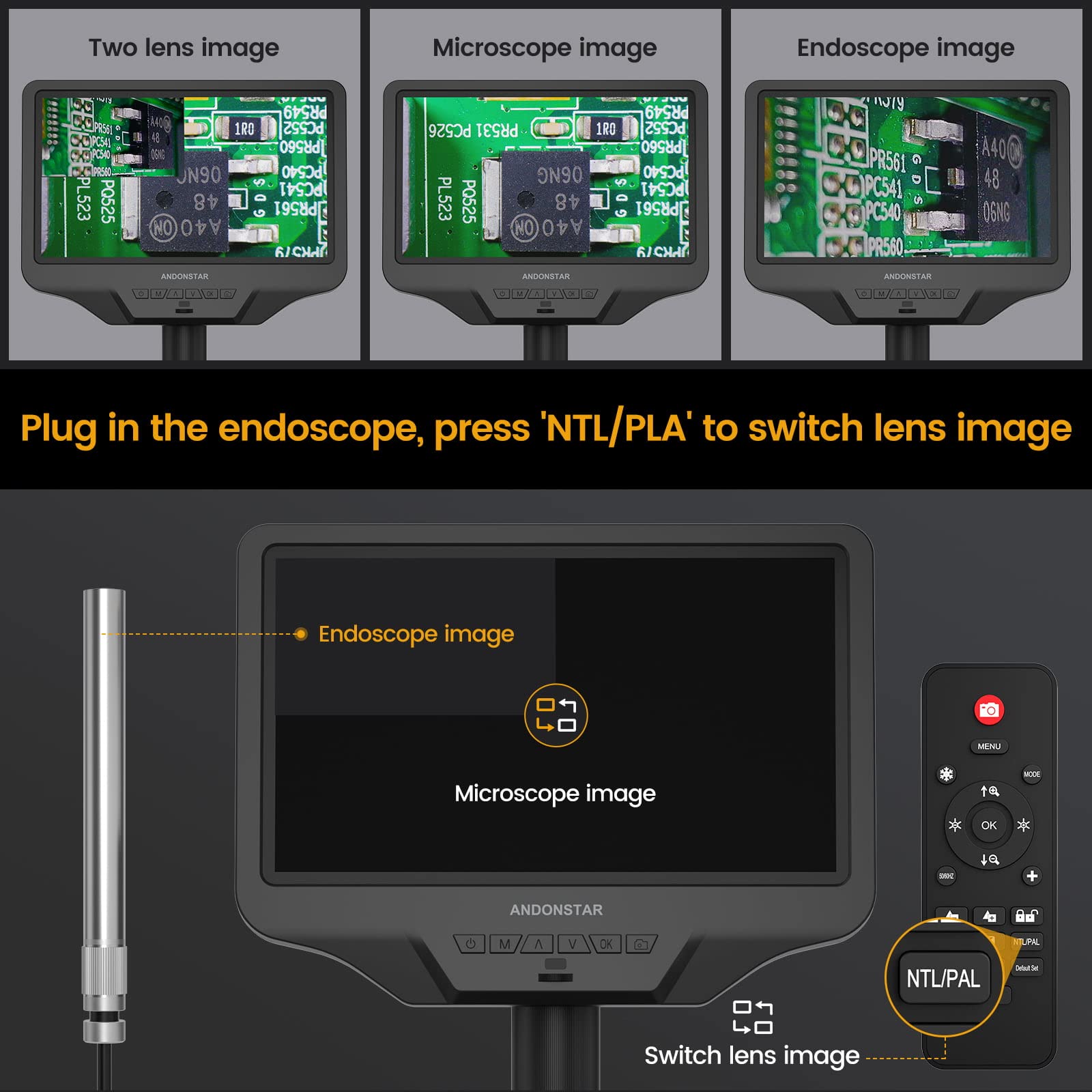

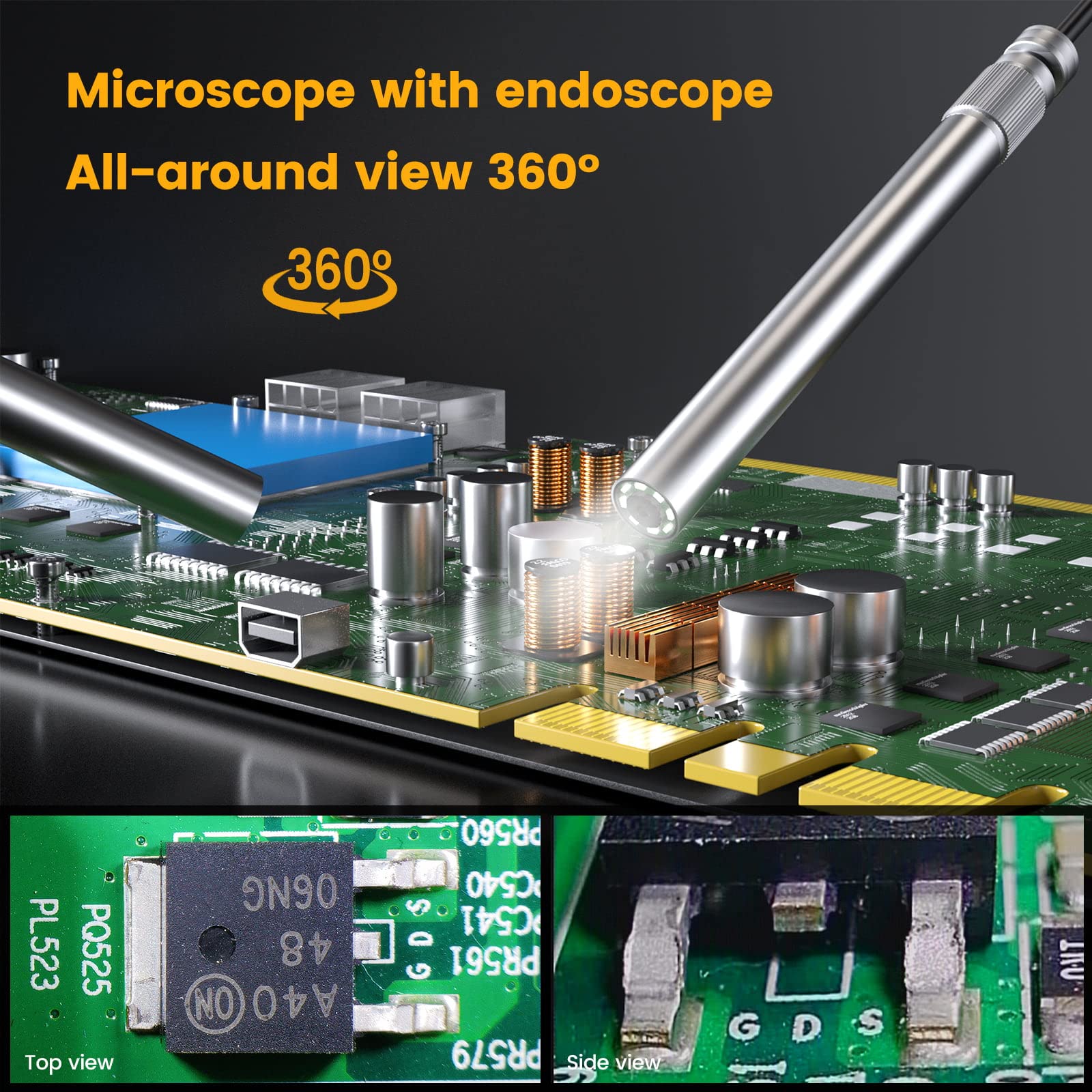

【Microscope with Endoscope to Observe Each Detail】Equipped with a 360° endoscope to see blind spots and fine object details, inspect solder joints, and detect false soldering. This scope is versatile for PCB soldering, watch repair, DIY projects, coin and plant observation, arts and crafts stone inspection, jewelry appraisal, household electronic repair, etc

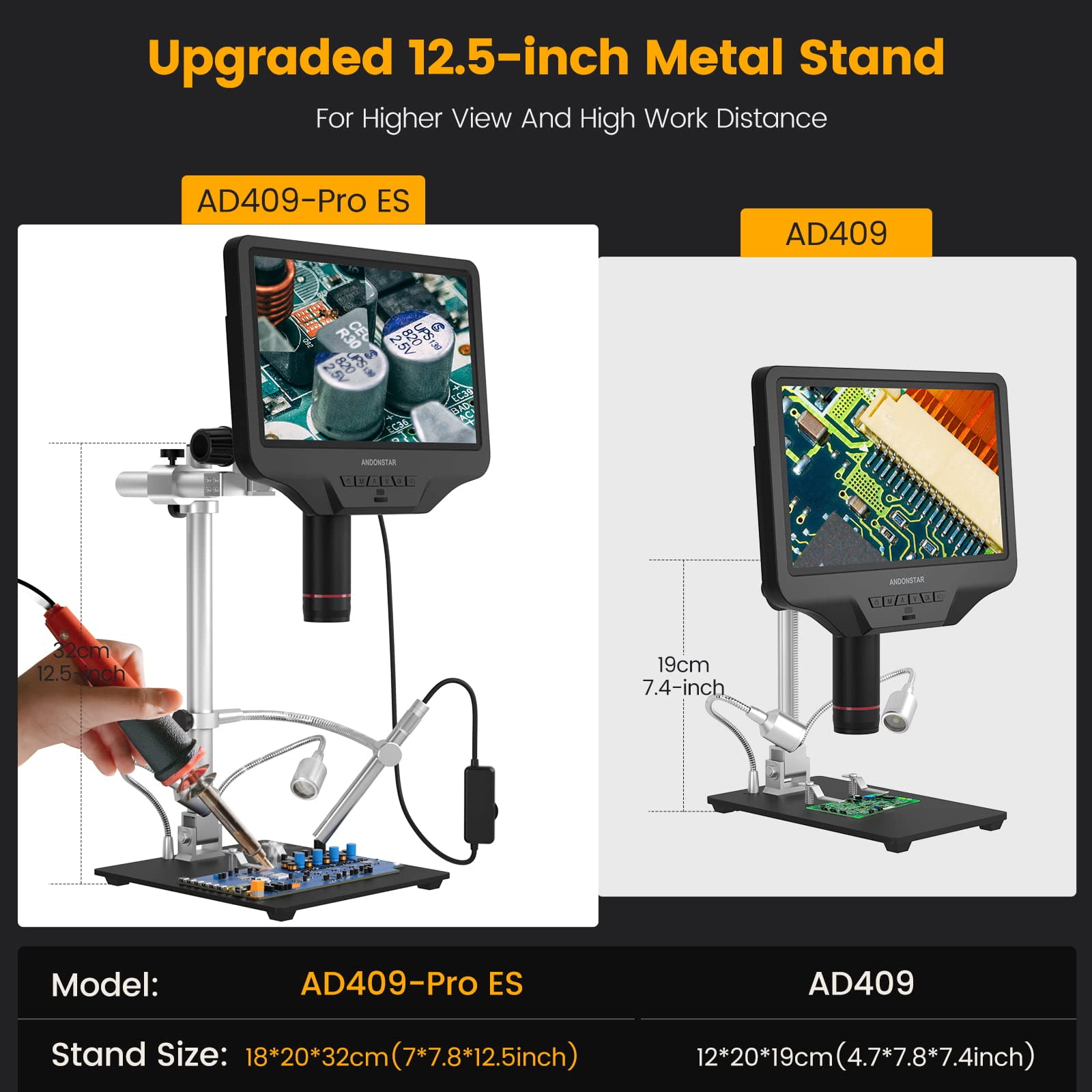

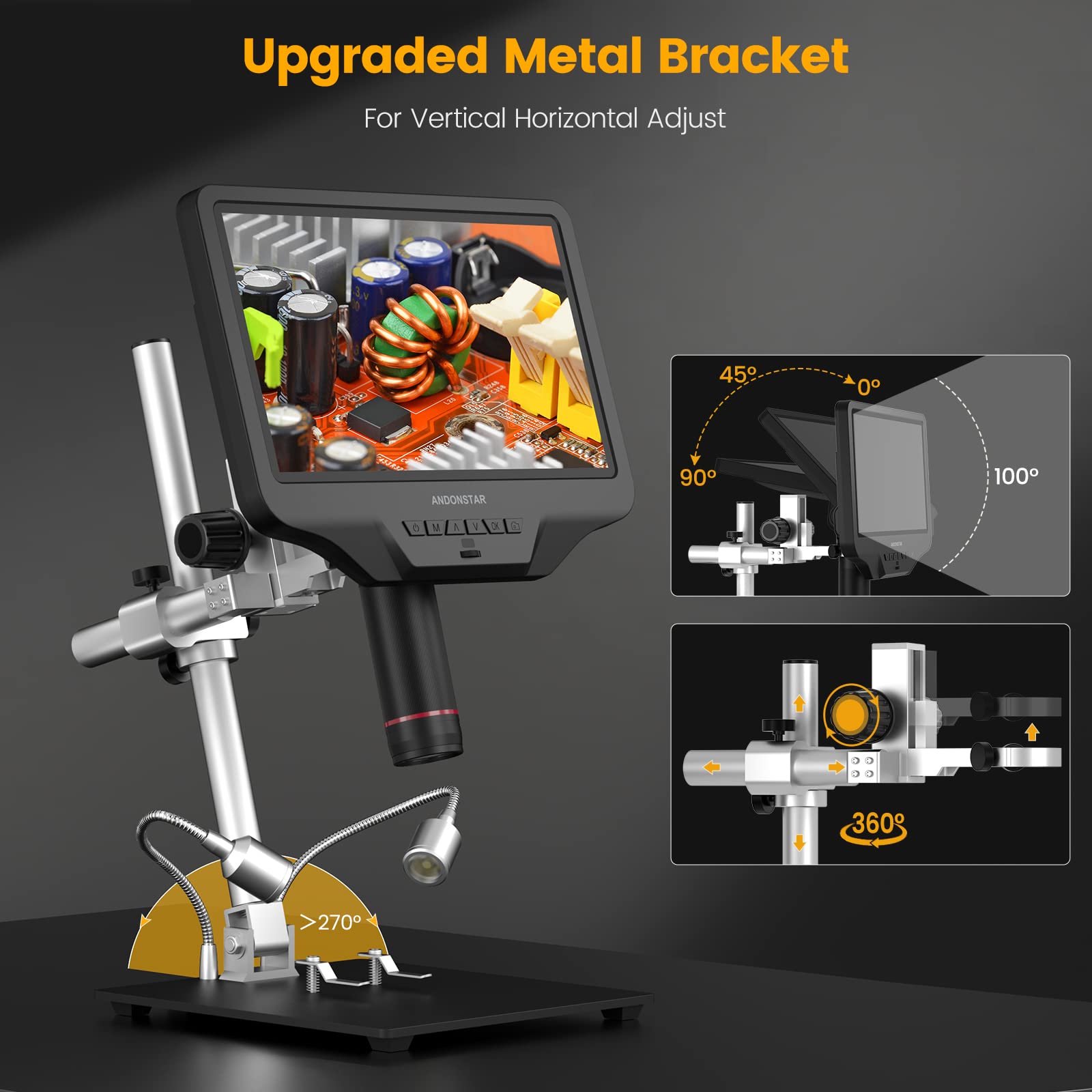

【Soldering Microscope with Upgraded Metal Bracket】Upgraded with a 12.5-inch metal bracket, the main bracket can be adjusted front and rear and can be rotated 360°horizontally. The second bracket can be adjusted up and down for precision. This unique design brings an extra-long working distance when soldering PCB boards

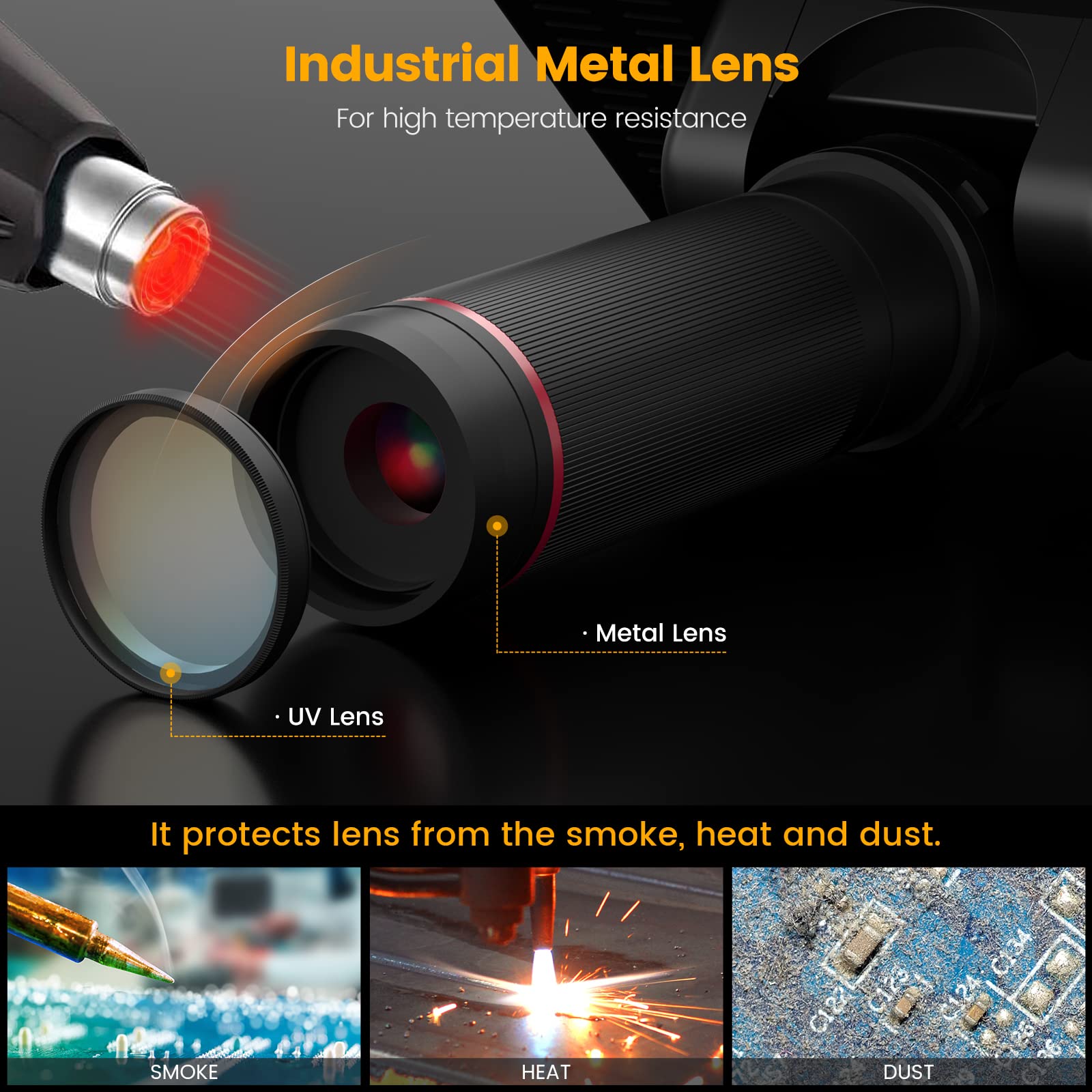

【Industrial-grade Metal Lens and Protective UV Filter】Quality industrial metal lens is high temperature resistant and suitable for soldering and repairing. The assembled UV filter is perfect to protect the lens from heat and smoke during the process of soldering and also acts as a filter to reduce reflection
【10.1" Screen and UHD 2160P Video Microscope】Features a 10.1-inch IPS screen and UHD 2160P video recording, the excellent image processing system provides sharp image quality and helps capture minute details with a deep depth of field. Photo resolution Max 24M (5600*4200). Video output UHD 2880X2160 24FPS; FHD1920X1080 60FPS/30FPS; HD1280X720 120FPS

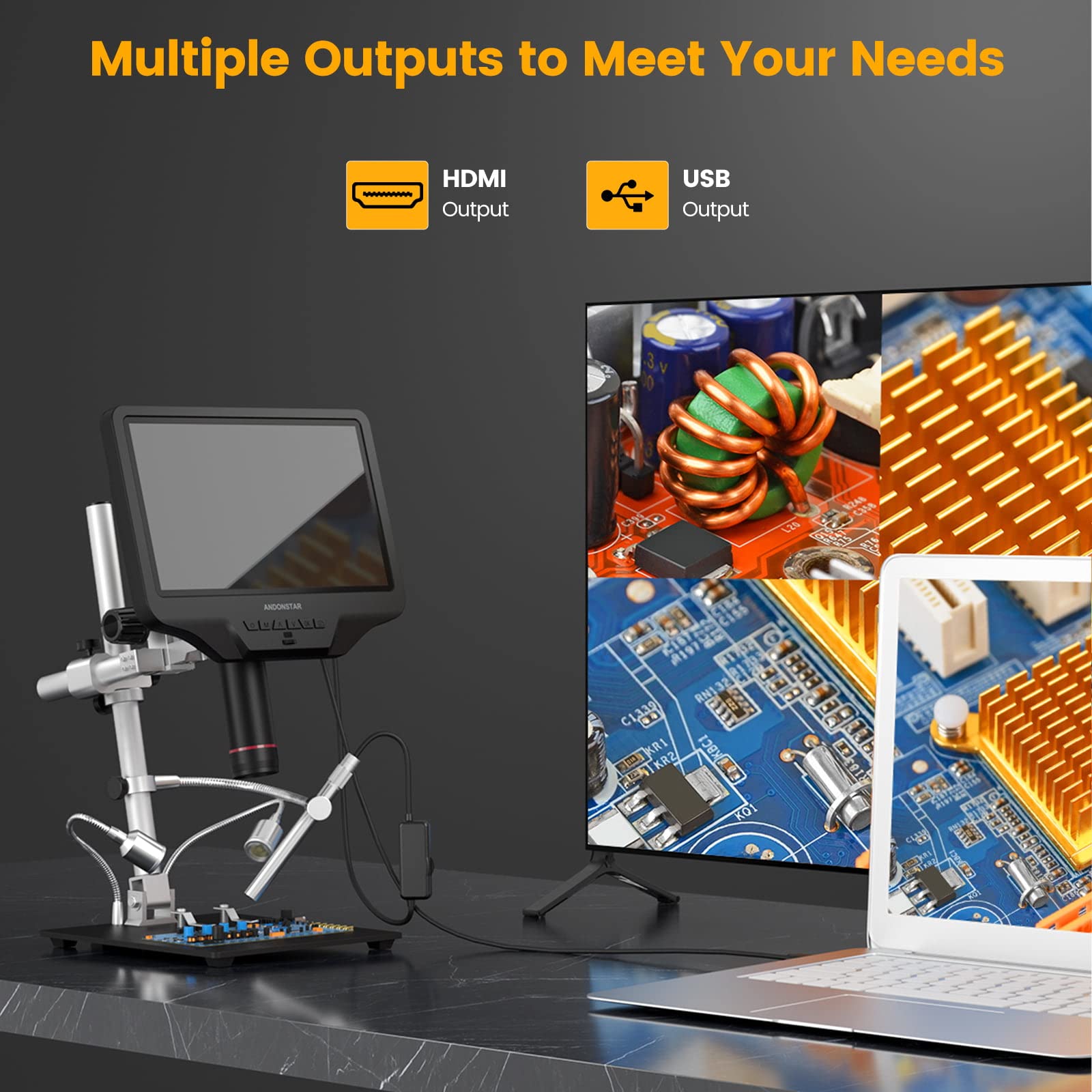

【Multiple Output Methods to Meet Your Needs】Support HDMI output, PC output (endoscope not supported), and WiFi output, so you can extend your microscope for a larger field of view. The included PC measurement software allows for accurate measurements and easy data sharing and analysis

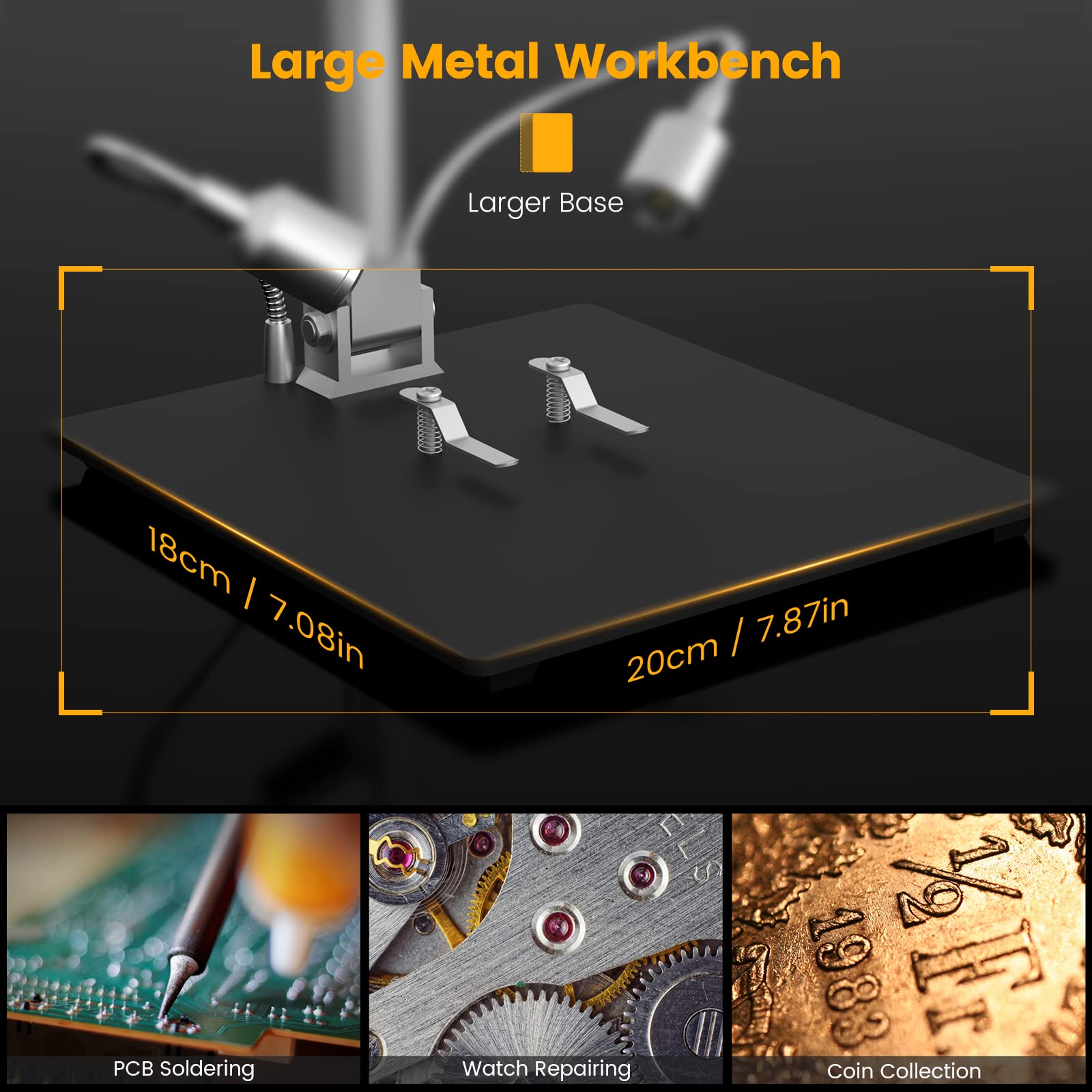

【Adjustable LED Fill Light】The larger metal baseplate (7*7.8 inches) provides more space for doing electronic work, such as soldering larger circuit boards. The 2 side lights on the base can be flexibly bent, and the brightness can be adjusted by the switch cable to see the product clearly. The endoscope has built-in lights, and the brightness can be adjusted by the light regulator to adapt to different light environments
【Smart Remote Control to Operate】It is convenient to control the microscope by remote control to take photos, and videos, zoom in and zoom out, and rotate images. You don't need to press the LCD microscope, which is perfect to avoid shaking the screen. Suitable for various occasions
【Powerful Measurement Function】Support Windows PC connection and measurement function. Install measurement software, connect the microscope to Windows PC with a USB cable and then select "PC camera" mode on the microscope, open measurement software and select microscope device. Then you can measure the length of the object, calculate the area, take pictures, record video, etc

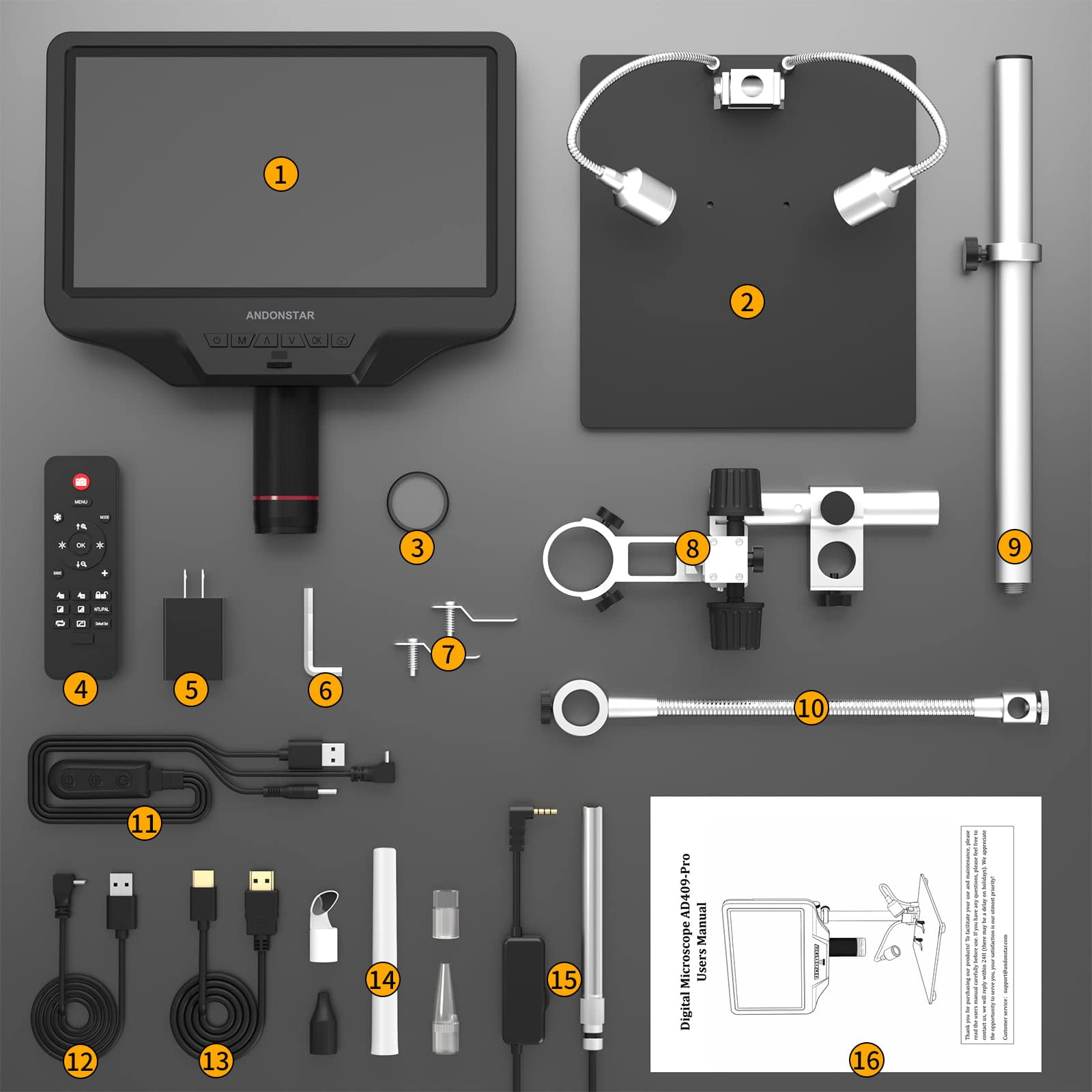

【What you will get】Microscope monitor x1, Metal baseplate(with light)x1, UV filter(assembled) x1,Remote control x1, Power plug x1, Wrench x1, Metal clip x2, Beam assembly x1, Column x1, , Adjustable arm x1, Switch cable x1, HDMI cable x1, USB cable x1, endoscope fittings x5, endoscope x1, Instruction x1
