VSDISPLAY 14.9" 1280x390 LCD Screen LTA149B780F with HDMI VGA DVI Audio LVDS Controller Board M.NT68676 - Wall Mount Digital Signage Display for Casino Slot Machines, Retail Marquee Monitors & Arcade Cabinet Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:34591383
Product Description
LCD Controller Board: HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: HD-MI DVI VGAAudio Input: HD-MIAudio Output: Speaker ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 125mm x 58mm x 17mm14.9" LTA149B780F 1280X390 LCD Screen:Display Mode TN, Normally White, TransmissiveResolution 1280RGB)×390Outline Size 407.5 × 136×20.5(H×V×D)Display Area 360.94 × 109.98 (H×V)Brightness 400 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6-bit) , 20 pins , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× HD-MI VGA DVI LCD Controller Board M.NT686761× 14.9inch LTA149B780F 1280X390 LCD Screen1× LVDS Cable1× Converter Board1× Keyboard With Cable1× BracketEasily mount the exposed backside. Save your space, keep your desktop neat. .
Product Features

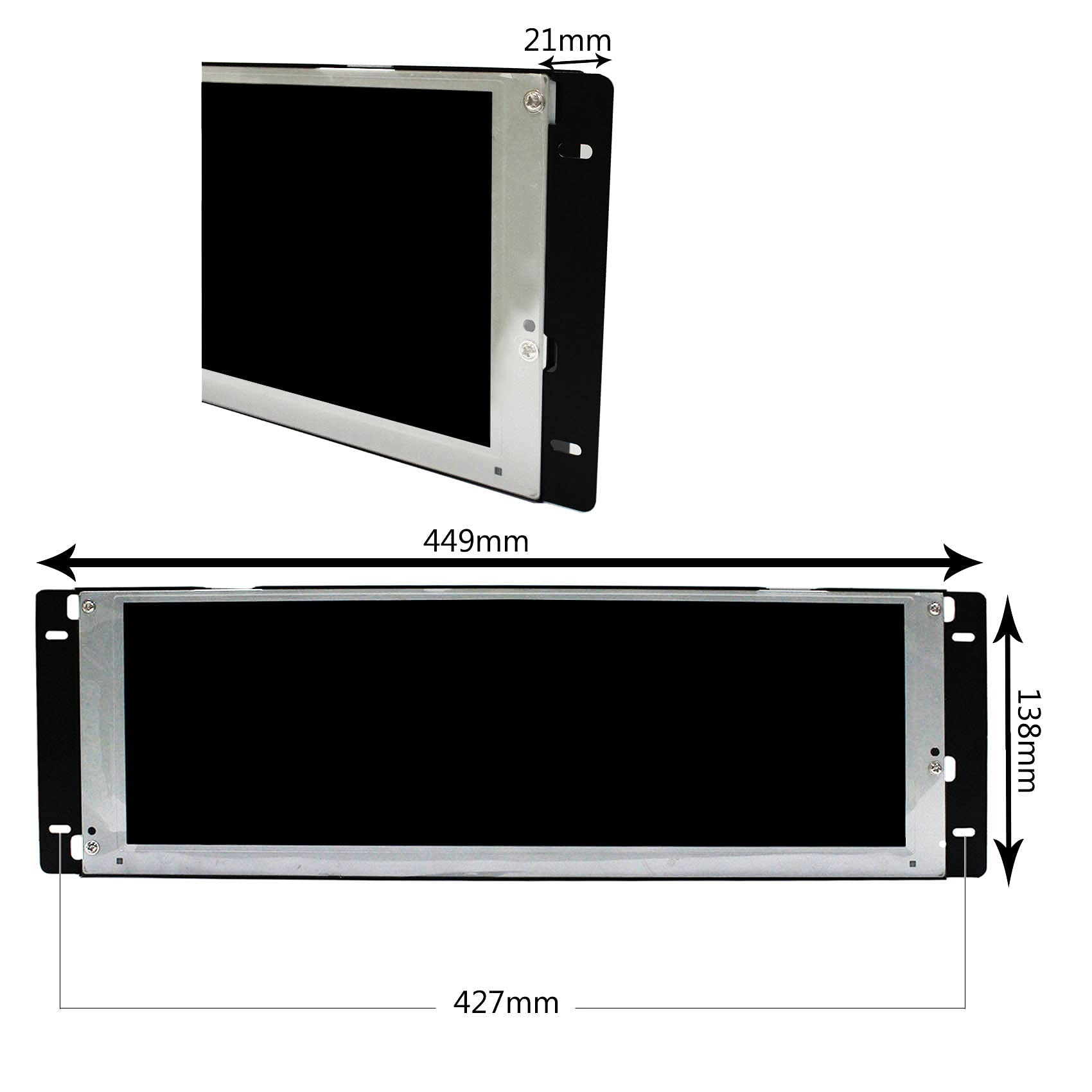

14.9" LTA149B780F 1280X390 LCD Screen Resolution 1280RGB)×390 Outline Size 407.5 × 136×20.5(H×V×D) Display Area 360.94 × 109.98 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 5001 (Typ.) (TM) Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen (Video Input HD-MI DVI VGA Audio Input HD-MI Audio Output Speaker Connector)
Perfectly works as a digital marquee for . Save your space, keep your desktop neat...

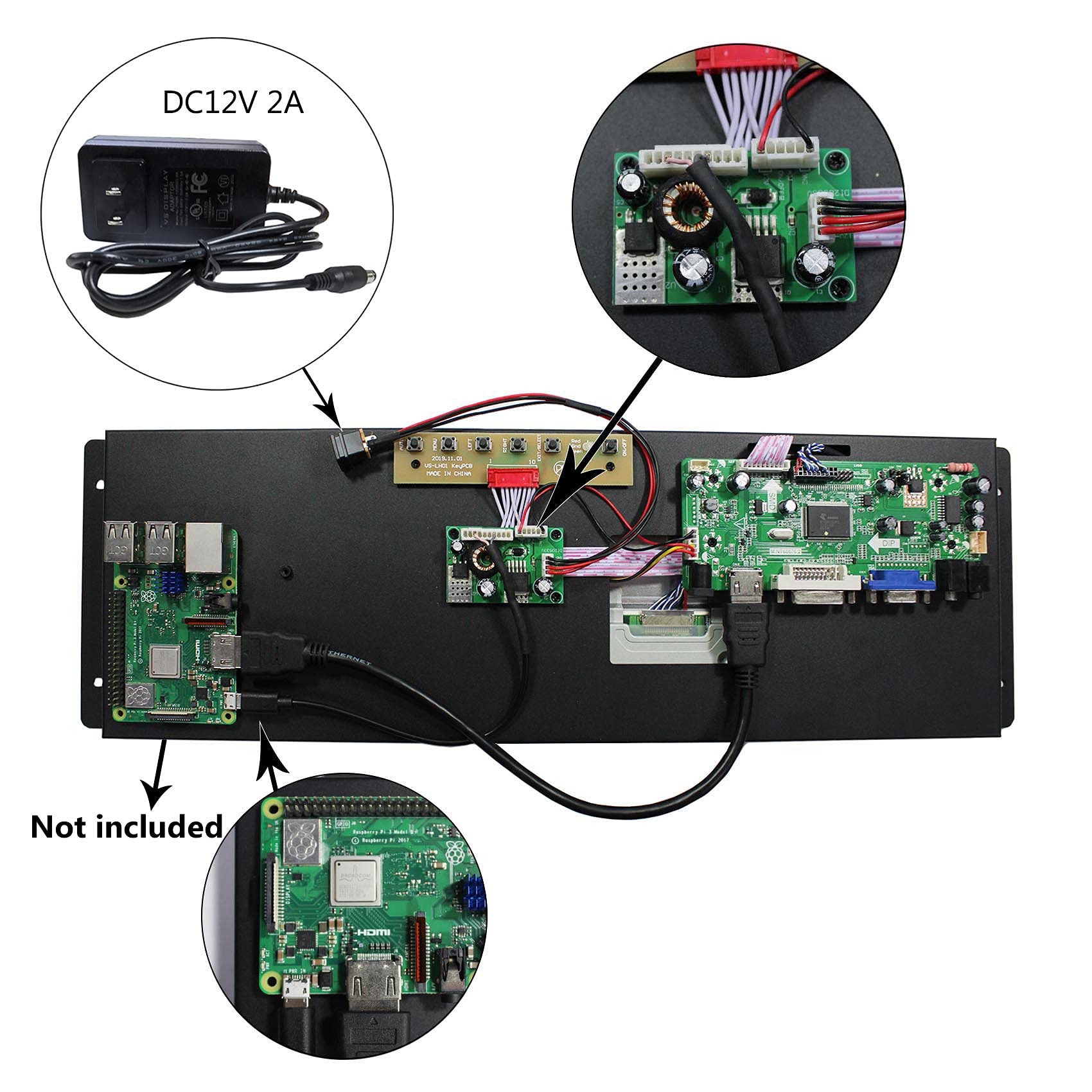

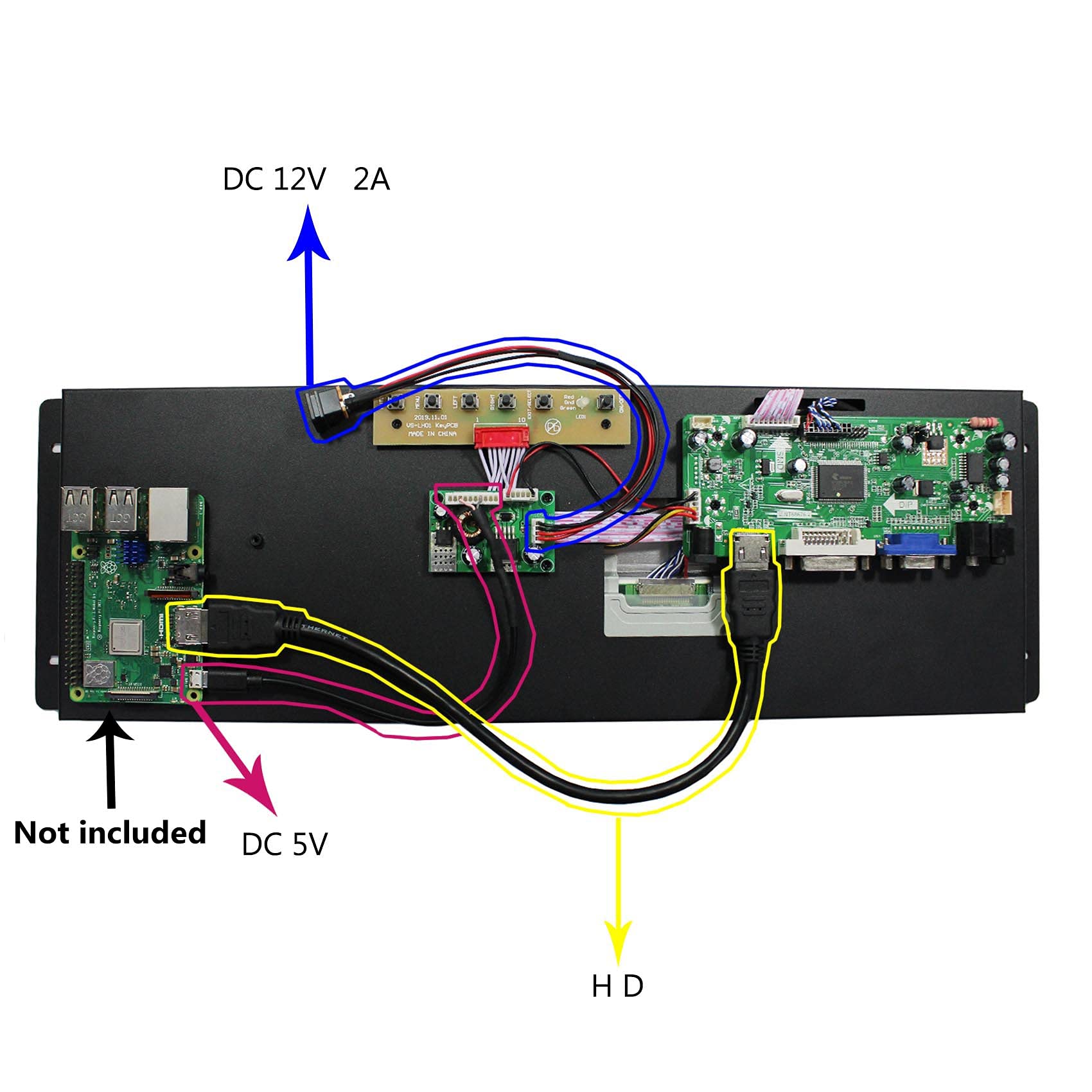

Recommend Power Adater Spec. Input Power Adapter 12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board) Come In Standby Model When Not Input Signal Standby Model <1W

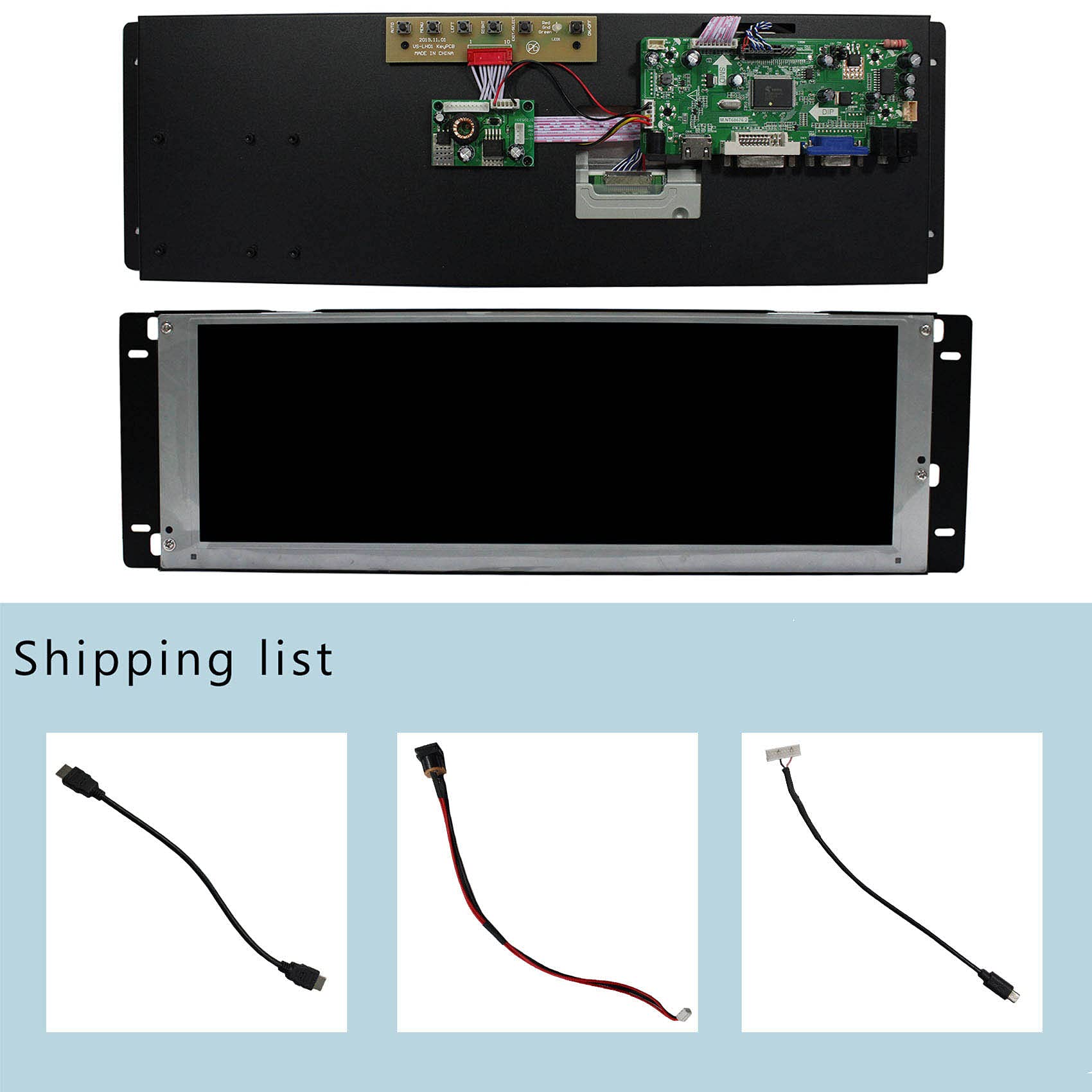

Packing list 1× HD-MI VGA DVI LCD Controller Board M.NT68676 1× 14.9inch LTA149B780F 1280X390 LCD Screen 1× LVDS Cable 1× Converter Board 1× Keyboard With Cable 1× Bracket (Please Note There is No Power Adapter in The Packing List.)
